Product Details:
Payment & Shipping Terms:
|
| Product Name: | Galvanized Steel Pole | Shape: | Polygonal Round |
|---|---|---|---|
| Package: | Nude | Length Of Per Section: | Within 14 Meter Once Forming |
| Thickness: | 1 Mm To 36mm | Surface Treatment: | Hot Dip Galvanized |
| Highlight: | power distribution poles,steel power poles |
||

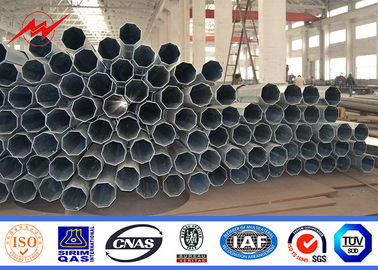

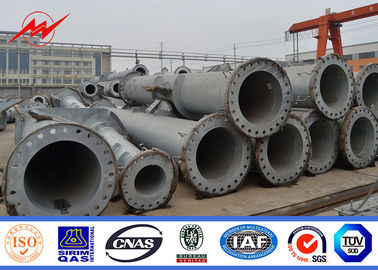

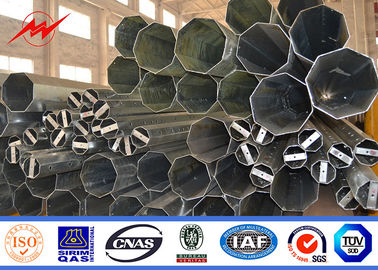

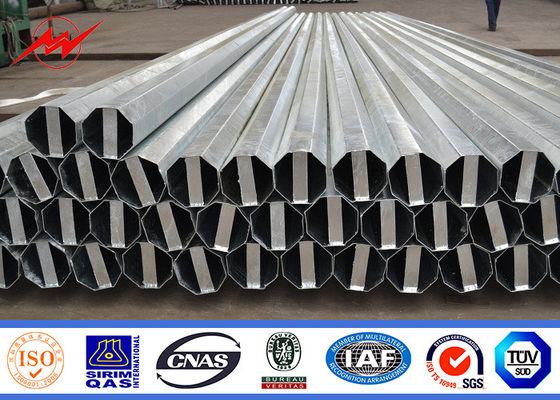

66kV Africa 10m-20m Galvanized Steel Power Pole Electric Pole with Galvanization
Steel
The material is in accordance with NF EN 10025
Standard and NF EN 10149 Standard,it has the following property.
-Yield Strength=355N/mm2
-Toughness remains the same under 20 degrees below zero.
-Galvanization is in accordance with NFA35503 Standard Class 1.

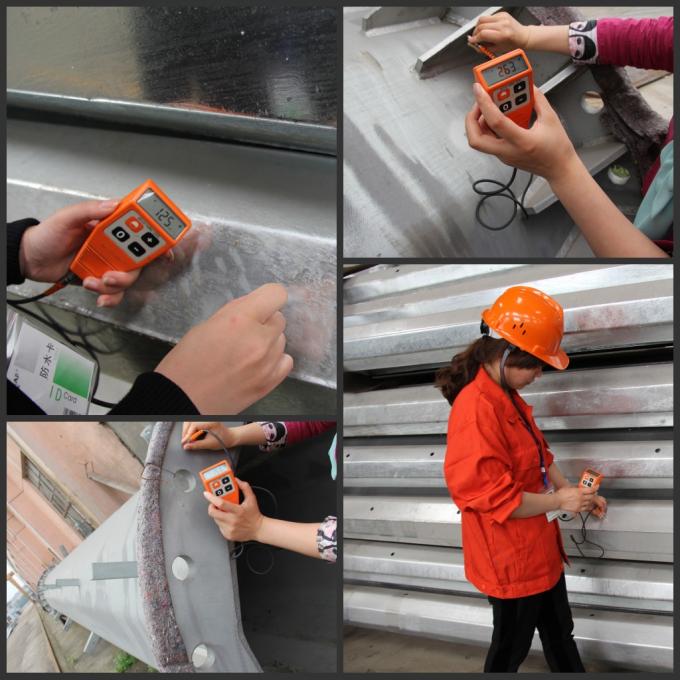

Galvanization test
Standard:NFA91121
Average thickness of the galvanization:Not less than 86μm.
Specifications:
| Electric Pole Specification In Congo | |||||||
| Height | Load(KN) | Top Diameter(mm) | Bottom Diameter(mm) | Wall Thickness(mm) | Pole Shape | Load Height(mm) | Material |
| 8M | 2.5 | 100 | 210 | 2.75 | 8 | 6.2 | Gr65 |
| 8M | 5 | 120 | 290 | 2.75 | 8 | 6.2 | Gr65 |
| 8M | 6.5 | 130 | 330 | 2.75 | 8 | 6.2 | Gr65 |
| 8M | 8 | 170 | 360 | 2.75 | 8 | 6.2 | Gr65 |
| 8M | 10 | 180 | 405 | 2.75 | 8 | 6.2 | Gr65 |
| 10M | 11 | 145 | 334 | 3 | 12 | 8 | Gr65 |
| 11M | 6 | 120 | 246 | 3 | 12 | 8.9 | Gr65 |
| Electric Pole Specification In Congo | |||||||
| 11.8M | 5 | 150 | 355 | 3 | 8 | 9.4 | Gr65 |
| 11.8M | 6.5 | 180 | 400 | 3 | 8 | 9.4 | Gr65 |
| 11.8M | 8 | 190 | 440 | 3 | 8 | 9.4 | Gr65 |
| 11.8M | 10 | 190 | 450 | 3.5 | 8 | 9.4 | Gr65 |
| 11.8M | 12.5 | 220 | 500 | 3.5 | 8 | 9.4 | Gr65 |
| 11.8M | 16 | 230 | 560 | 3.5 | 8 | 9.4 | Gr65 |
| 11.8M | 20 | 240 | 585 | 4 | 8 | 9.4 | Gr65 |
| 11.8M | 25 | 260 | 655 | 4 | 8 | 9.4 | Gr65 |
| 11.8M | 32 | 260 | 660 | 5 | 8 | 9.4 | Gr65 |

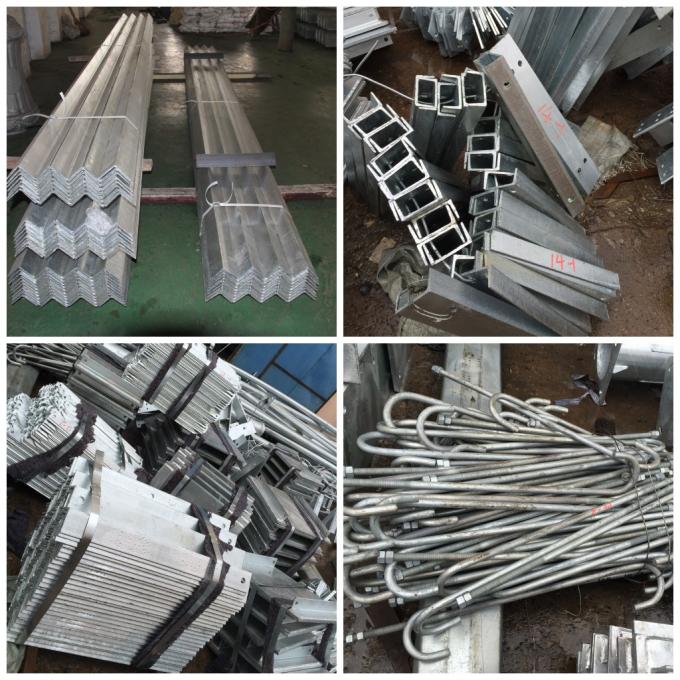

Standard Accessory
-Top plate
-Base plate
-Bottom strip
-Standard hole
-Climbing rung
-Anchor bolt
-Bitumen protection
-Painted marking
-Removable ladder
These are the standard accessories of the electric pole.
Company Introduction:
Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.
We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.
We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.
