Product Details:
Payment & Shipping Terms:
|
| Height: | 20-40m | Thickness: | 1-30mm |
|---|---|---|---|
| Design: | Against 8 Grade Of Earthquake | Color: | White ,silver |
| Welding: | AWS D1.1 | Type: | Flange Type/burial |
| Certification: | ISO BV | Tolerance Of Dimension: | +- 2% |
| Highlight: | 14m Electrical Power Pole,Customizable Electrical Power Pole,11m Electrical Power Pole |
||
1. Quality Q345/Q235 steel plate
2. advanced equipent
3. high level technical personnel
4. hot dip galvanization

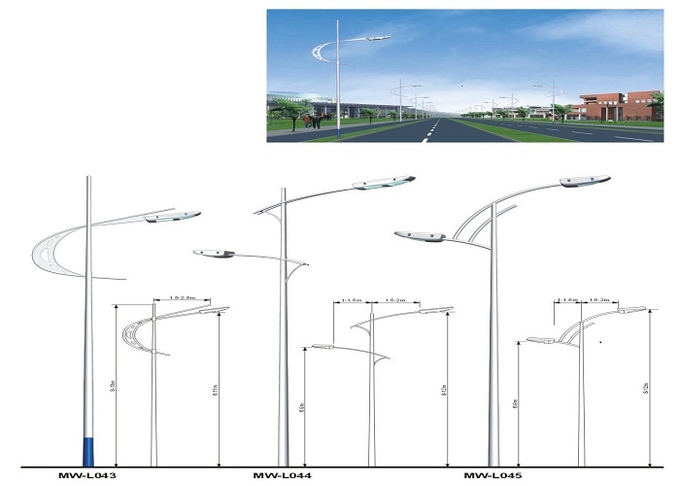

Drawings:
| Type | Street Lamp pole, lamp post . Lamp column |
| Shape | Conoid ,Multi-pyramidal,Columniform,polygonal or conical |
| Material | Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490ST52 |
| Torlance of dimenstion | -0.02 |
| Design Load in Kg | 300~ 1000 Kg appliced to 50cm from the to pole |
| Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. |
| Standard | Octagonal tapered column Certified by SIRIM QAS INTERNATIONAL. Approved by JABATAN KERJA RAYA MALAYSIA. Conforms to Standard: Pole design : BS EN 40 Material : BS EN 10025 S275 / JIS G3101 SS400 Welding : BS 5135 Galvanizing : BS 729 / ISO 1461 ASTM A 123 |
| Length of per section | Within 14m once forming without slip joint. |
| Suit for | Highway Roadway Residential subdivisions Commercial development |
| Option | Height from 6m to 12m Flange mounted or planted type Variable arm length from 0.125m to 3.0m with single or double arm type Variable spigot size from 35mm to 60mm. |
| Production Process |
Raw material test → Cutting →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration →Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages |
