Product Details:
Payment & Shipping Terms:
|
| Name: | 12M 33KV Electrical Power Steel Pole | Type: | 12M 33KV Electrical Power Steel Pole |
|---|---|---|---|
| Material: | ASTM 572 Grade 50 With Yieled Strength No Less Than 345mpa | Shape: | Octagonal |
| Height: | 8-45m | Galvanization Standard: | Hot Dip Glavanized Inaccordance With ASTM A123 With Thickness ≥ 86μm |
| Thickness: | 3mm | Welding Standard: | AWS D1.1 With Penatration Rate No Less Than 80%-100% |
| Joint Of Poles: | 50 Years | Warranty Period: | Overlap / Flange/ Direct Burial |
| Highlight: | electric utility poles,steel utility poles |
||
12M 33KV Electrical Power Steel Pole with Hot Dip Galvanized For Power Transmission
| Specification | 12M 33KV Electrical Power Steel Pole |
| Type | 12M 33KV Electrical Power Steel Pole |
| Shape | Octagonal |
| Material | ASTM 572 grade 50 with yield strength not less than 345mpa |
| Torlance of dimenstion | -0.02 |
| Design Load in Kg | 300~ 1000 Kg appliced to 50cm from the to pole |
| Surface treatment | Hot dip glavanized inaccordance with ASTM A123 with thickness ≥ 86μm |
| Standard | Octagonal Conical tapered column Certified by SIRIM QAS INTERNATIONAL. Approved by JABATAN KERJA RAYA MALAYSIA. Conforms to Standard: Pole design : BS EN 40 Material : BS EN 10025 S275 / JIS G3101 SS400 Welding : BS 5135 Galvanizing : BS 729 / ISO 1461 ASTM A 123 |
| Length of per section | Within 15m once forming without slip joint. |
| Option of steel power pole | Height from 8m to 35m Flange mounted or planted type |
| Production Process of high mast pole |
Raw material test → Cutting →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration →Deburr→Galvanization or powder coating ,painting →Recalibration→Thread →Packages |
|
The products made by us is high resisitivity against heat ,humidity ,moisture,water etc. Owning to use the rare earth special craft during the productionprocess, to ensure its high precise, good quality and competitive advantage.Meanwhile, we can accept the product type damage test to ensure the highsafe factor of our products. Because of good quality and competitive pricecaused by innovation and management reform, experienced service infabrication ,design, installment, consultancy, we have built long-term relationship with many countries, such as America ,Morocco,Sir Lanka ,Russia, Jordan,Guyana,Nigeria, Australia, Spain, Indonesia, Singapore, the Philippines, Kenya,Areb etc.
|
|

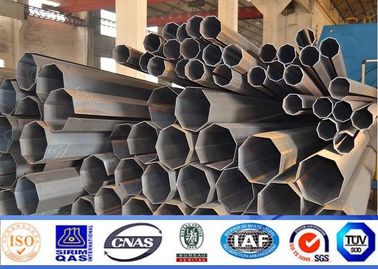

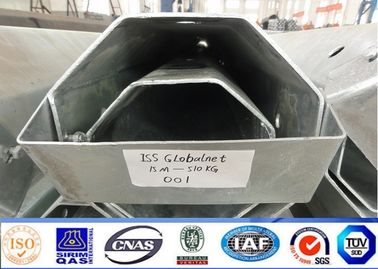

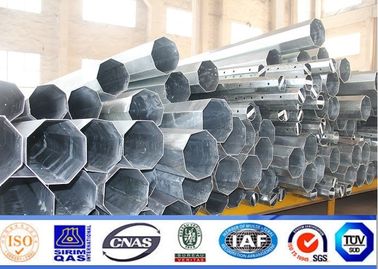

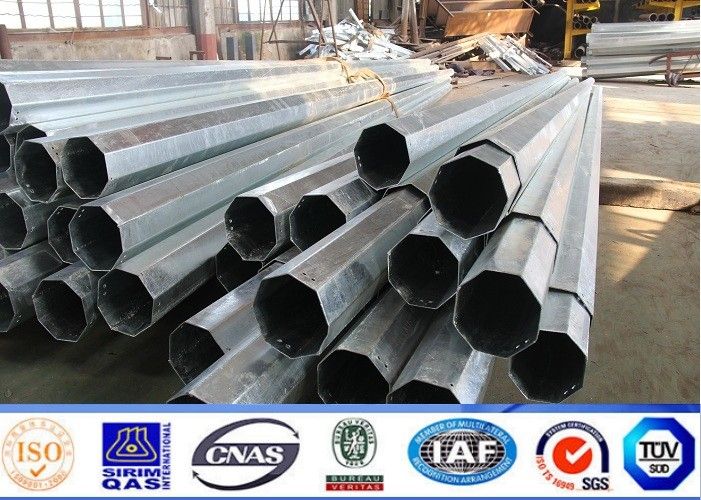

Products Picture

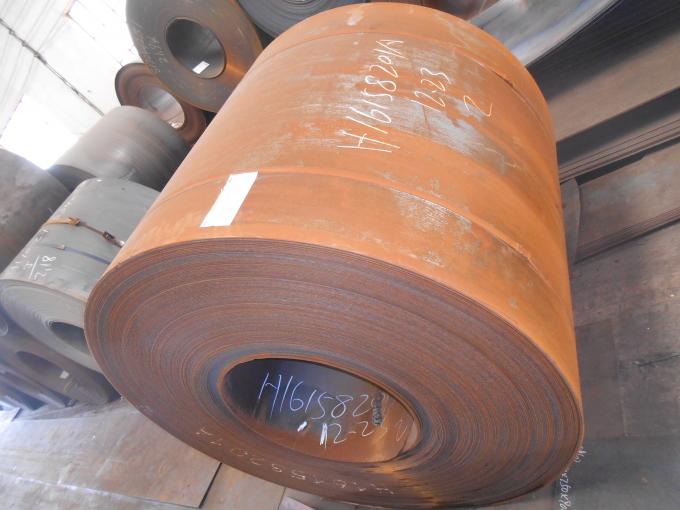

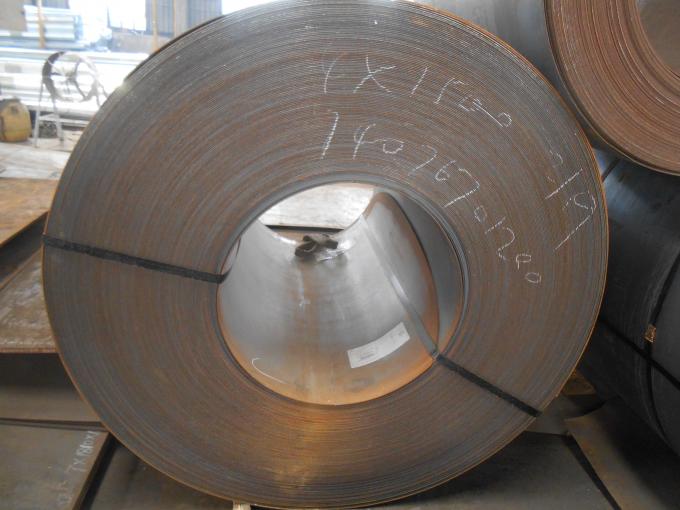

Material
ASTM 572 grade 50 with yield strength not less than 345mpa

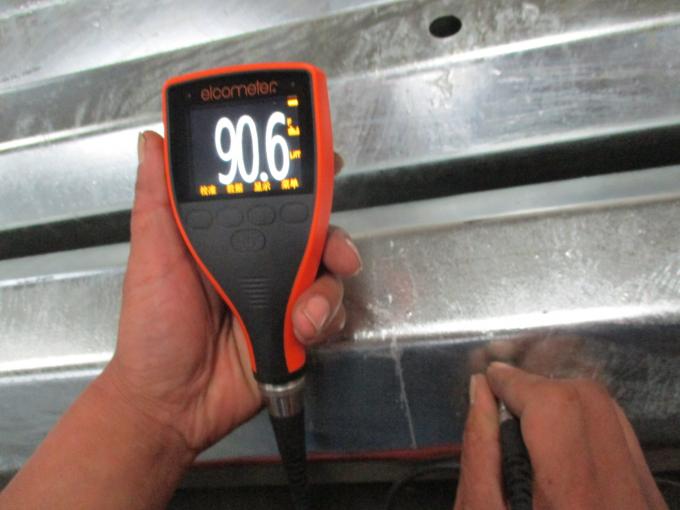

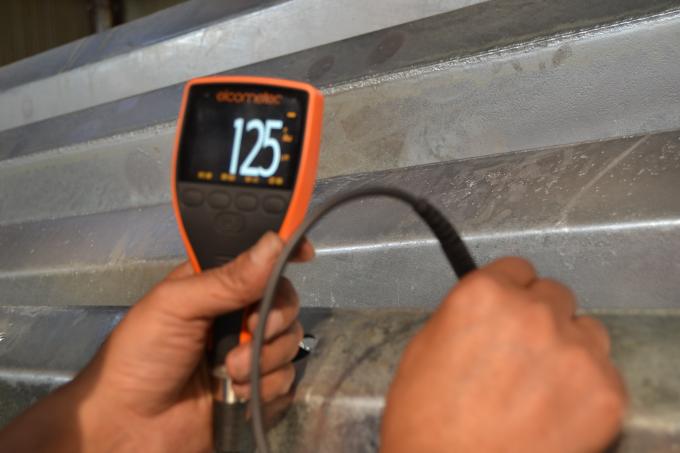

3.Glavanization
---Average thickness of the galvanization : not less than 86 μm

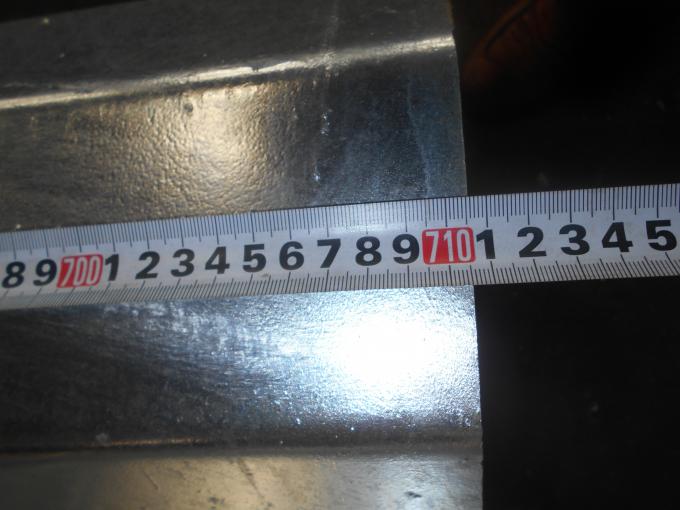

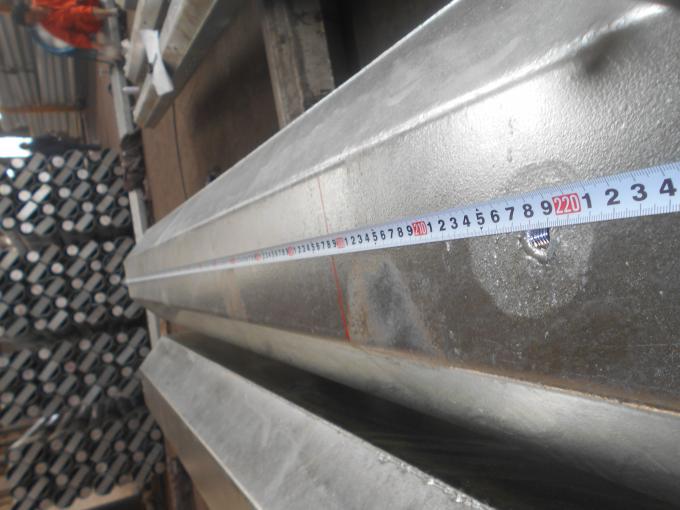

4. Manufacture Tolerance
---Componet Length:-25mm to 75mm
---Stranghtness: 2mm/m
---Twisting degree: 1° per 3 meters length
---Ovalisation: Maximum is 3%
---The average diameter : +/-0.5%
---Slip length: +/-150mm
5.Standaed Accessory
---Top plate
---Base plate
---Bottom strip
---Climbing rung
---Anchor bolt
---Bitumen marking
---Removable ladder
6. The information to inquiry or purchase
---Steel pole height and force
---Cross arm type and length, the position to install in the steel pole
---The method to fix the cross arm (use Bolt to connect or use one or two template to weld in
the steel pole to install the cross arm)
---Safety factor of the steel pole.
---wind speed
---Type of climbing rung
---Destination port
