Product Details:
Payment & Shipping Terms:
|
| Product Name: | Power Transmission Pole | Shape: | Octagonal |
|---|---|---|---|
| Package: | Nude | Torlance Of Dimenstion: | +-2% |
| Thickness: | 5mm | Standard Of Galvanization: | ASTM A 123 |
| Highlight: | power distribution poles,steel power poles |
||

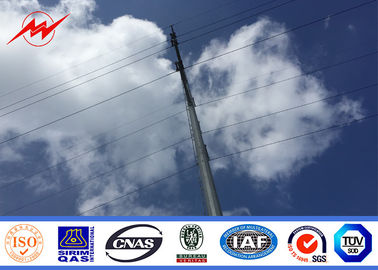

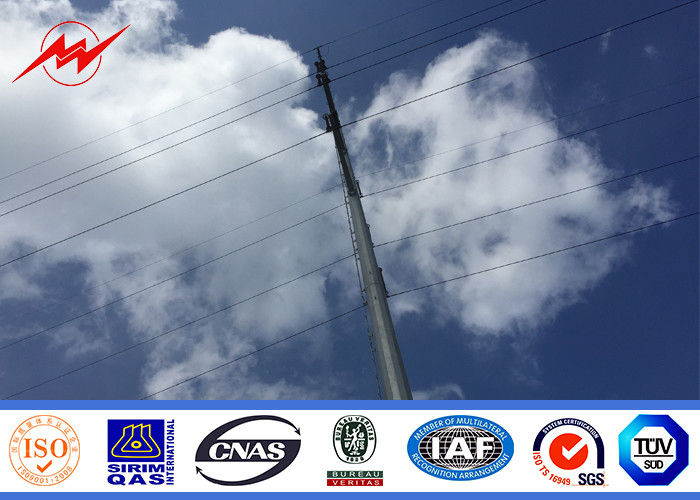

25m Galvanized electric power transmission steel pole/Steel Tubular Pole/steel tower
Steel
The material is in accordance with NF EN 10025
Standard and NF EN 10149 Standard,it has the following property.
-Yield Strength=355N/mm2
-Toughness remains the same under 20 degrees below zero.
-Galvanization is in accordance with NFA35503 Standard Class 1.
Standard Accessory
-Top plate
-Base plate
-Bottom strip
-Standard hole
-Climbing rung
-Anchor bolt
-Bitumen protection
-Painted marking
-Removable ladder
These are the standard accessories of the electric pole.
Specifications:
| Electric Pole Specification In Congo | |||||||
| Height | Load(KN) | Top Diameter(mm) | Bottom Diameter(mm) | Wall Thickness(mm) | Pole Shape | Load Height(mm) | Material |
| 8M | 2.5 | 100 | 210 | 2.75 | 8 | 6.2 | Gr65 |
| 8M | 5 | 120 | 290 | 2.75 | 8 | 6.2 | Gr65 |
| 8M | 6.5 | 130 | 330 | 2.75 | 8 | 6.2 | Gr65 |
| 8M | 8 | 170 | 360 | 2.75 | 8 | 6.2 | Gr65 |
| 8M | 10 | 180 | 405 | 2.75 | 8 | 6.2 | Gr65 |
| 10M | 11 | 145 | 334 | 3 | 12 | 8 | Gr65 |
| 11M | 6 | 120 | 246 | 3 | 12 | 8.9 | Gr65 |
| Electric Pole Specification In Congo | |||||||
| 11.8M | 5 | 150 | 355 | 3 | 8 | 9.4 | Gr65 |
| 11.8M | 6.5 | 180 | 400 | 3 | 8 | 9.4 | Gr65 |
| 11.8M | 8 | 190 | 440 | 3 | 8 | 9.4 | Gr65 |
| 11.8M | 10 | 190 | 450 | 3.5 | 8 | 9.4 | Gr65 |
| 11.8M | 12.5 | 220 | 500 | 3.5 | 8 | 9.4 | Gr65 |
| 11.8M | 16 | 230 | 560 | 3.5 | 8 | 9.4 | Gr65 |
| 11.8M | 20 | 240 | 585 | 4 | 8 | 9.4 | Gr65 |
| 11.8M | 25 | 260 | 655 | 4 | 8 | 9.4 | Gr65 |
| 11.8M | 32 | 260 | 660 | 5 | 8 | 9.4 | Gr65 |
Installation
-Remove all the equipment on the pole during Assembly.
-Circle a sling around th epole shaft of each section.
-Fix the sling on top section to one pulley block.
-The sling on the bottom section is tightly fixed and fixed at the center of gravity.
-Make the steel pole vertical by tighten the sling of the top section.
-Fix the steel pole.
-Remove the sling.

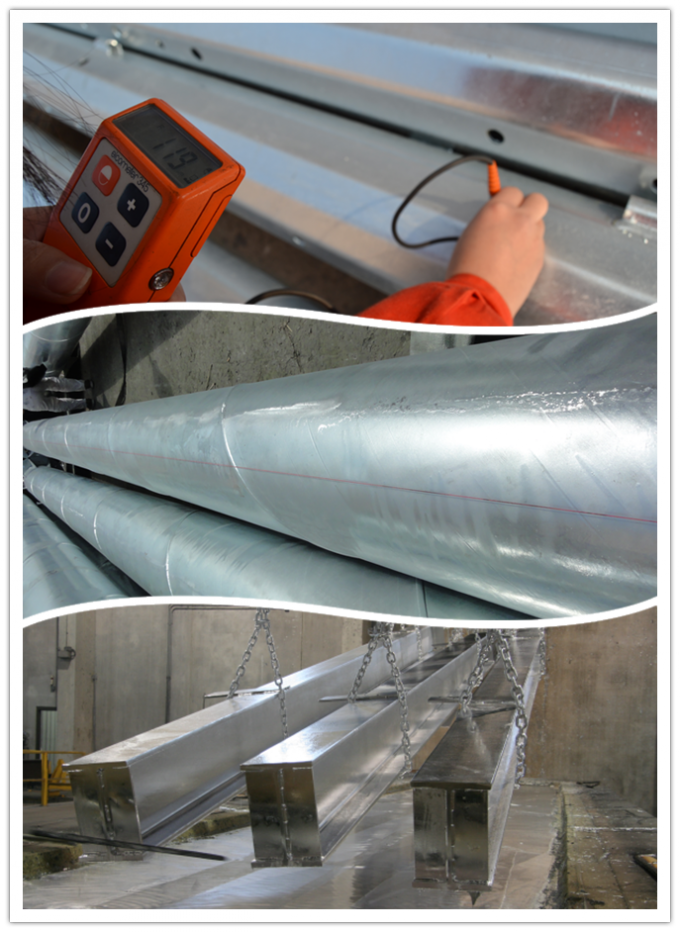

Galvanization
Standard:NFA91121
Average thickness of the galvanization:Not less than 86μm.

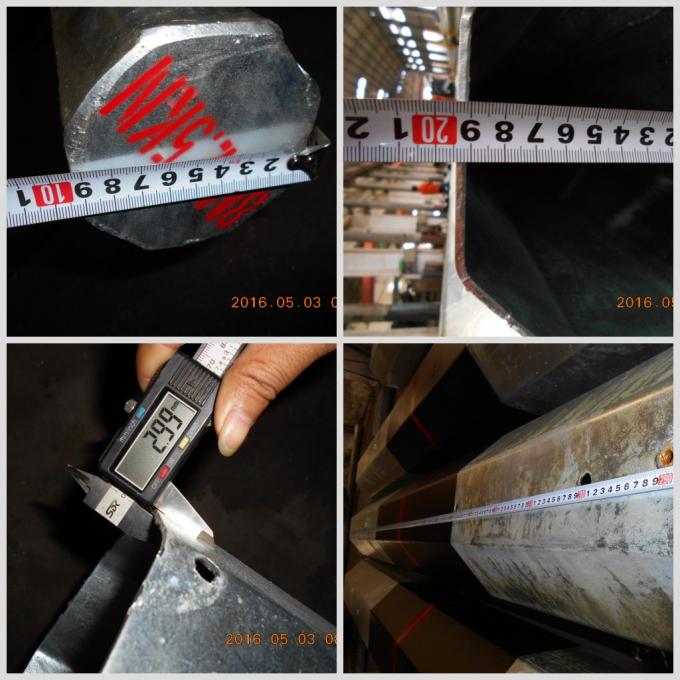

Manufacture Tolerance
-Component Length:-25mm to 75mm
-Straightness:2mm/m
-Twisting degree:1°per 3 meters length
-Ovalisation:Maximum is 3%
-The average diameter:+/-0.5%
-Slip length:+/-150mm
Company Introduction:
Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.
We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.
We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.
