Product Details:
Payment & Shipping Terms:
|
| Height: | From 6m To 15m | Style: | Galvanization |
|---|---|---|---|
| Surface Treatment: | Hot Dip Galvanized | Torlance Of The Dimenstion: | +-2% |
| Wind Speed: | 160km/h | Thickness: | 1mm To 30mm |
| Highlight: | street lamp pole,galvanized street light pole |
||

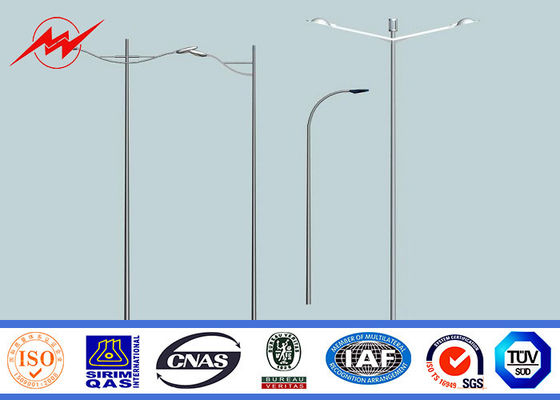

1- octagonal street light poles
2- 9m, 10m, 11m, 12m octagonal lamp post
3- Hot dip galvanized treatment, eco powder coating
4- EPA wrapped
Features of production
|
Material: |
Hot rolled steel, Q235,Q345,S235,S355,SS400,Gr 50 |
|
Pole’s height |
3m –15m |
|
length |
Within 16m once forming without slip joint |
|
Wall thickness |
2.3mm-30mm |
|
Pole's Shape: |
Round, Polygonal, Octagonal, Taper round, Round conical, Square |
|
Arm type: |
Single arm, Double arm, Tri-arm, Four-arm |
|
Application: |
Outdoor illumination, Road illumination, Street illumination |
|
welding |
It has past flaw testing, internal and external double welding makes the welding beautiful in shape. It confirms with the international welding standard of CWB. |
|
Galvanizing |
Hot dip galvanization with thickness of 80-100µm average in accordance with Chinese standardGB/T 13912-2002 or American standard ASTM A123, IS: 2626-1985. |
|
Painting color: |
Refer to client’s requirement and then according to (RAL)Color card |
|
Finishing 1: |
Black pole, Rough pole |
|
Finishing 2: |
Hot dip Galvanizing antirust. |
|
Finishing 3: |
HDG. with powder coating |
|
Temperature range |
-35 °C~+45 °C |
|
Max wind velocity |
Aganist wind pressure of 160Km/h |
|

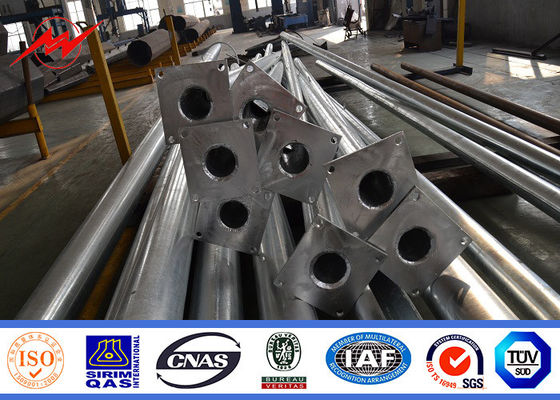

Base plate mounted |
Base plate is square, octagonal or round in shape with slotted holes for anchor bolt and dimension as per customer’s requirement. |
|
Ground mounted |
The length buried underground as per customer’s requirement. |
|
Quality Control |
We are well equipped with superior production equipments, solid technical strength, excellent managing mode and quality control system, perfect after service. We have passed the ISO9001:2008 Quality Systems Authentication. |
|
Certificates |
ISO9001-2008, Audited Supplier, The AAA grade certificate of goodwill |
|
Other |
Less land occupation & easy maintenance. |
Advantages
1) Higher quality lower cost to win the competitive price.
2) Less land occupation
3) Warranty of quality: More than 15 years.
4) 3 production lines to ensure fast delivery date.
5) OEM, ODM service.
6) Skilled manufacturer, quality control and technical team.
Process of production
Material preparation-flatting-cutting on the bias-bending-welding-repair and grinding-reforming-flushing-fix bottom plate-welding bottom plate-opening door-welding door strip,electric strip,and locking-bending arm-hot dip galvanization-plastic powder painted-inspection-shipment.
Packaging Detail and delivery
The 8m street lighting pole sually covered by woven bag, or following client’s requirements, photos below for reference. and 10 days for a 40ft container quantity; or following the discussion between buyer and seller.
After service
Our staffs will ask for the information of the product carefully after sale , meeting your need as soon as possible.
