Product Details:
Payment & Shipping Terms:
|
| Feature: | 70-120ft | Application: | Electrical Power Transmission |
|---|---|---|---|
| Surface Treatment: | Hot Dip Galvanization | Thickness: | 1-30mm |
| Protective Level: | IP65 | Shape: | Round Polygonal |
| Size: | Customized Drawing | Voltage: | 10-550kv |
| Certification: | ISO BV | ||
| Highlight: | 120FT Electric Power Transmission Pole,1200kg Metal Power Pole,Electric Steel galvanization Power Transmission Pole |
||
Product Description
|
Type
|
Straight Pole ,Tensile Pole ,Turn Pole
|
|
Material:
|
Usually Q345B/A572,minimum yield strength>=345n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52- |
|
Shape
|
polygonal or conical
|
|
Safety Factor
|
Safety factor for conducting wine : 8
Safety factor for grounding wine : 8 |
|
Design Load in Kg
|
1000-2000Kg appliced to 300cm from the to pole
|
|
Marks
|
Nane plate through rivert or glue ,engrave ,emboss as per customer requirement
|
|
Surface treatment
|
Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
|
|
Joint of Poles
|
Insert mode,inner flange mode,face to face joint mode .
|
|
Design of pole
|
Against earthquake of 8 grade
|
|
Length of per section
|
Within 14m once forming without slip joint
|
|
Welding
|
We has past flaw testing.Internal and external double welding makes the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1 |
|
Production Process
|
Raw material test → Cutting→Molding or bending →Welding (longitudinal )→Dimension verify→Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages
|
|
Minimum yield strength
|
355mpa
|
|
Minimum ultimate tensile strength
|
490mpa
|
|
Max ultimate tensile strength
|
620mpa
|
Our Company
| OVERSEAS PROJECT | ||||
| COUNTRY | UTILITY | VOLTAGE LEVEL | TYPE | YEARS OF SUPPLY |

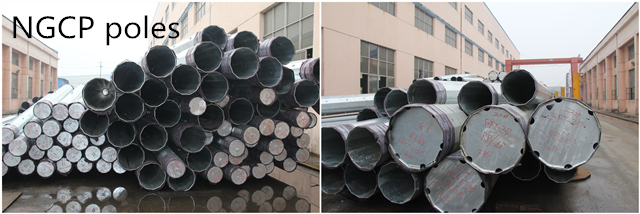

| PHILIPPINES | NEA,NGCP | 69KV | 25FT-100FT,AS PER CUSTOMS’ REQUIREMENT | EVERY YEAR |
| GHANA | GHANA ELERCITY COMPANG | 10m,11m | 2015 | |
| PAKISTAN | WAPDA | 132KV | SPA,APD,SPG | 2013 |
| SAUDI ARABIC | SAUDI ELECTRICITY COMPANY | 10M ELECTRIC POLE | 2011 | |
| ECUADOR | CELEC | 138KV | PB-B40 | 2009 |
| MORE PROJECT ,PLEASE VISIT OUR WEBSITE OR CONTACT WITH SALES. | ||||
Jiangsu Milky Way Steel Poles Co.,Ltd.
Estabilshed in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi ,East of China ,near one of the largest sea port of China ,Shanghai ,Port .Our Products have been widely used in the power transmission ,signal transmission and lighting for street ,road ,square ,palaestra . and so on
We have plenty of export experience . Since our first overseas order from Pakistan in 1991 of 132 KV transmission poles ,our products have been deliveried to more than 70 countries and areas ,including America ,Australia ,Russia ,Genmery ,Span, Philippines ,Malaysia and so on
As an BV ,ISO , approved supplier in China ,we have more than 20 years produce and export steel pole ,and we can assure the pole we offered is of sound quality which made from qualified material with our professional workers and advance equipment .

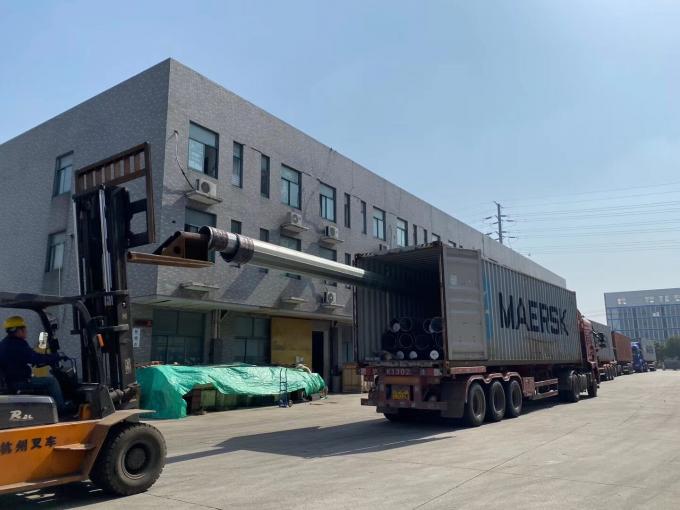

Packing & Delivery

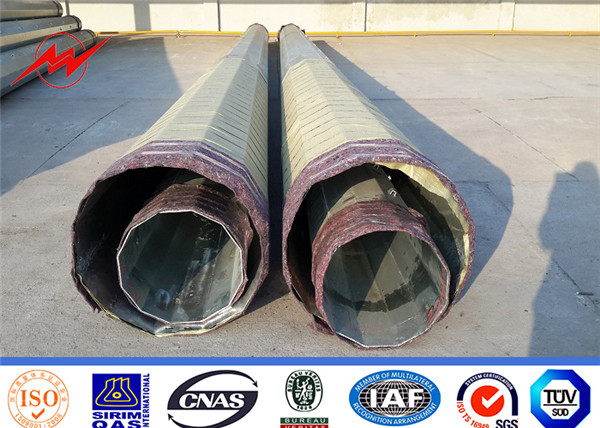

Packing
Package: Plastic paper or according to clients requirement.
Delivery
for 30 sets, goods can be ready for shipment within 10 workdays after receiving deposit.
