Product Details:
Payment & Shipping Terms:
|
| Product Name: | Steel Utility Poles | Application: | Power Transmission Line |
|---|---|---|---|
| Thickness: | 1 Mm To 36mm | Surface Treatment: | Hot Dip Galvanized |
| Power Capacity: | 10kV To 220kV | Shape: | Octagonal |
| Highlight: | electrical power poles,high voltage pole |
||

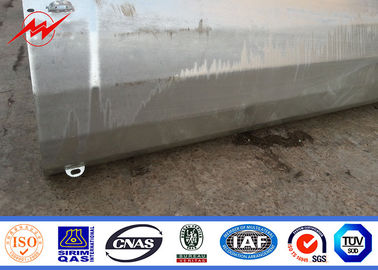

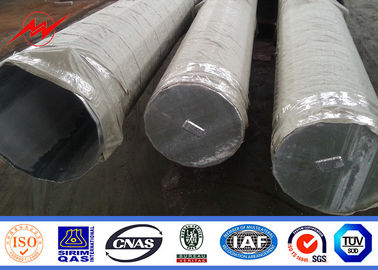

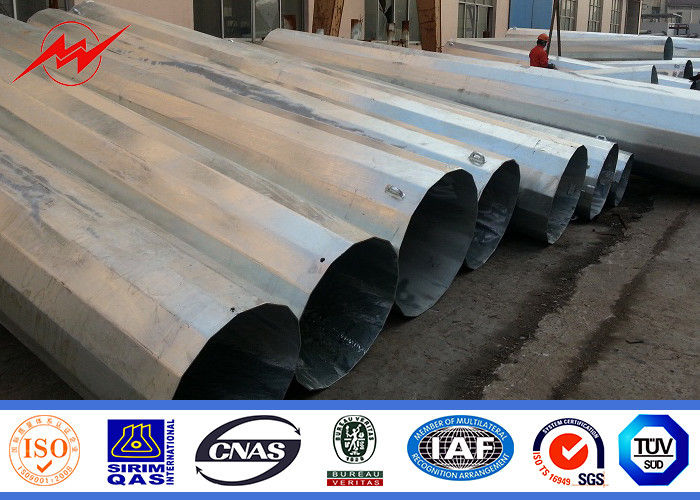

Double Circuit Transmission Line Steel Utility Pole With 345 Mpa Yield Strength
Specifications:
| Electric Pole Specification for Cameroon Market | ||||||
| Height | Load(Dan) |
Top |
Bottom |
Pole |
Section | Pole Shape |
| 9M | 200 | 120 | 210 | 3 | 1 | Octagonal |
| 9M | 325 | 130 | 270 | 3 | 1 | |
| 9M | 350 | 120 | 240 | 3 | 1 | |
| 11.8M | 800 | 140 | 332 | 4.5 | 1 | |
| 11.8M | 1000 | 175 | 370 | 4.5 | 1 | |
| 12M | 800 | 140 | 332 | 4.5 | 2 | |
| 12M | 1000 | 175 | 370 | 4.5 | 2 | |
| 13M | 400 | 150 | 370 | 3 | 2 | |
| 13M | 800 | 200 | 475 | 3.5 | 2 | |
| 13M | 1250 | 240 | 590 | 3.5 | 2 | |
Steel
The material is in accordance with NF EN 10025
Standard and NF EN 10149 Standard,it has the following property.
-Yield Strength=355N/mm2
-Toughness remains the same under 20 degrees below zero.
-Galvanization is in accordance with NFA35503 Standard Class 1.
The information to inquiry or purchase
-Steel pole height and force
-Cross arm type and length,the position to install in the steel pole
-The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole to install the cross arm)
-Safety factor of the steel pole
-Wind speed
-Type of climbing rung
-Destination port
-Other.
Galvanization
Standard:NFA91121
Average thickness of the galvanization:Not less than 86μm.
Quality Control
We strictly follow the standard of ISO9001-2008. Quality is in the first place at every stage of production to ensure the
product compliance to the specification/standards. Careful inspections are carried out by highly trained inspection
engineers during every procedure from raw material stage to finished product and delivery.
Production Process
Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages
Company Introduction:
Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.
We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.
We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.
