Product Details:
Payment & Shipping Terms:
|
| Product Name: | Steel Utility Pole | Application: | 33KV Electrical Power Distribution |
|---|---|---|---|
| Quality Control: | ISO 9001 | Welding Standard: | AWS D 1.1 |
| Surface Treatment: | Galvanization | Dimenstion Torlance: | +- 2% |
| Highlight: | electrical transmission poles,high voltage pole |
||

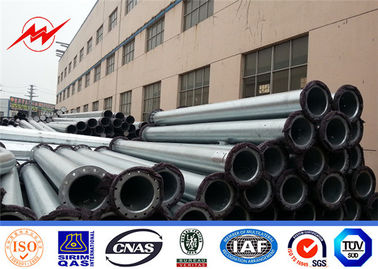

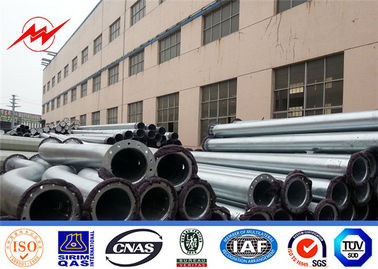

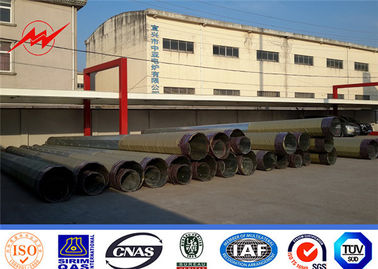

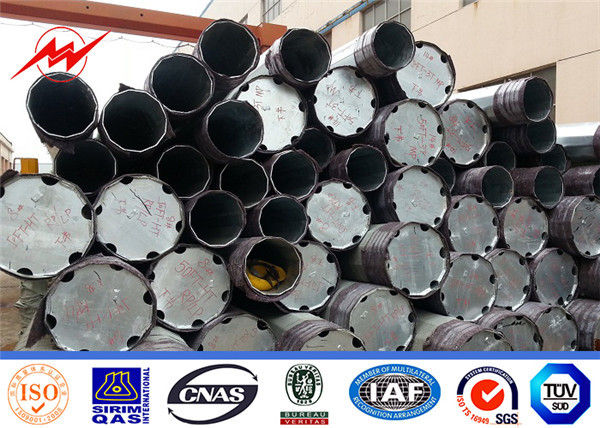

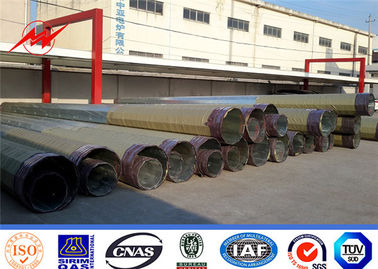

Transmission and distribution electrical power utilitygalvanized steel pole
Specifications:
|
Height |
From 9 meter to 100 meter |
|
Suit for |
Electric Power Transmission and Distribution |
|
Shape |
Polygonal or Conical |
|
Material |
Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm² Q235B/A36, Minimum Yield Strength ≥ 235 N/mm² As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400 |
|
Power Capacity |
10kV to 220kV |
|
Tolerance of the dimension |
According to client’s requirement. |
|
Surface treatment |
Hot dip galvanized Following ASTM A 123, or any other standard by client required. |
|
Joint of Poles |
Slip joint, flanged connected |
|
Standard |
ISO 9001:2008 |
|
Length of per section |
Within 14 meter once forming |
|
Welding Standard |
AWS (American Welding Society ) D 1.1 |
|
Thickness |
1 mm to 36mm |
|
Production Process |
Raw material test → Cutting →bending →Welding (longitudinal ) →Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages |
|

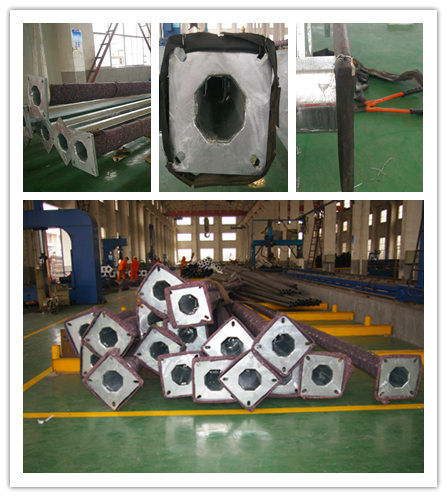

Packages |
Packing with plastic paper or according to client’s request. |

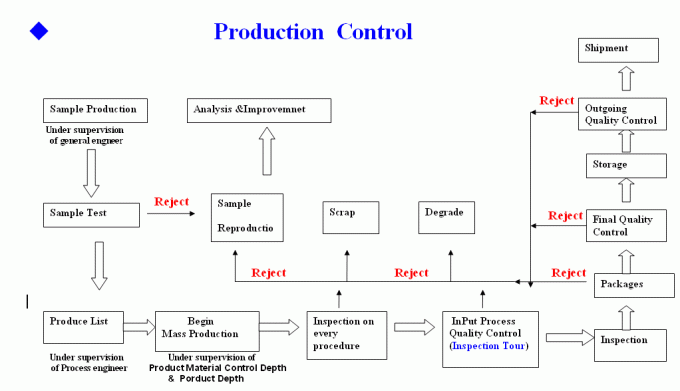

Production Flow:
The production process:Row material test → Cutting →Molding or bending →Welding (longitudinal )→Dimension verify →Flange welding→Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages

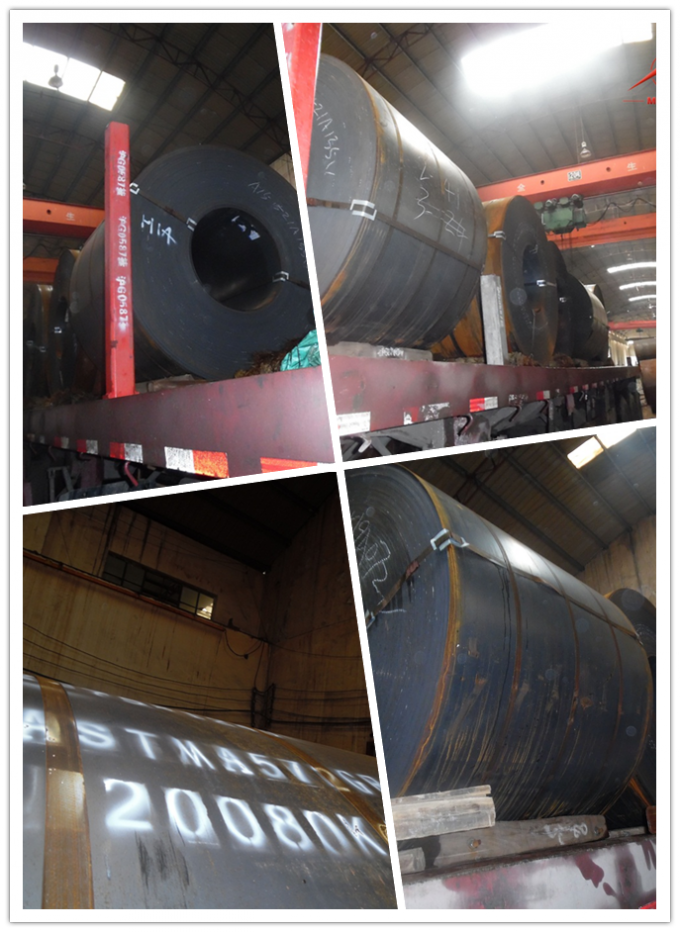

Descripition of material:
1. Poles are made by the high-quality metal plants,which were molded into the multi-row cone-shaped vertical steel barwith hot galvanized anti-corrosion treatment
2. Light plate frame is made by high-quality stainless steel
3. Fastened bolts and nuts of stainless steel
Application:
|
Plaza High Mast Lighting pole Airport High Mast Lighting pole Highway High Mast Lighting pole Storage-yard High Mast Lighting pole Industrial-plant High Mast Lighting pole |
Park High Mast Lighting tower Dock High Mast Lighting tower Stadiums High Mast Lighting tower Overpass High Mast Lighting tower Toll-station High Mast Lighting tower |
