Product Details:
Payment & Shipping Terms:
|
| Height: | 12m | Surface Treatment: | Hot Dip Galvanized Powder Paiting |
|---|---|---|---|
| Thickness: | 3mm | Optical Assembly Of Lighting Fixture: | IP 65 |
| Torelance Of Dimenstion: | +- 2% | Wind Speed: | 30m/s |
| Highlight: | electrical power poles,electrical transmission poles |
||

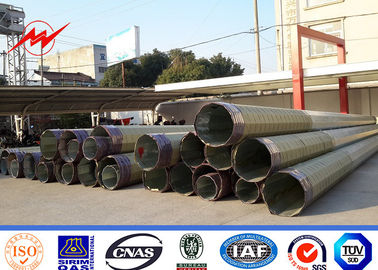

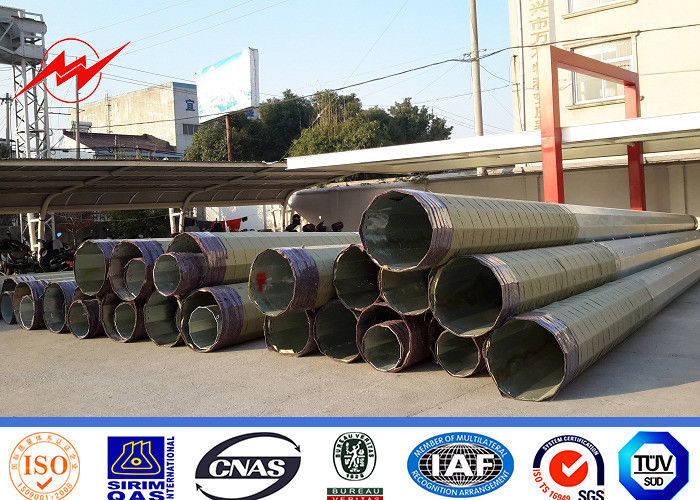

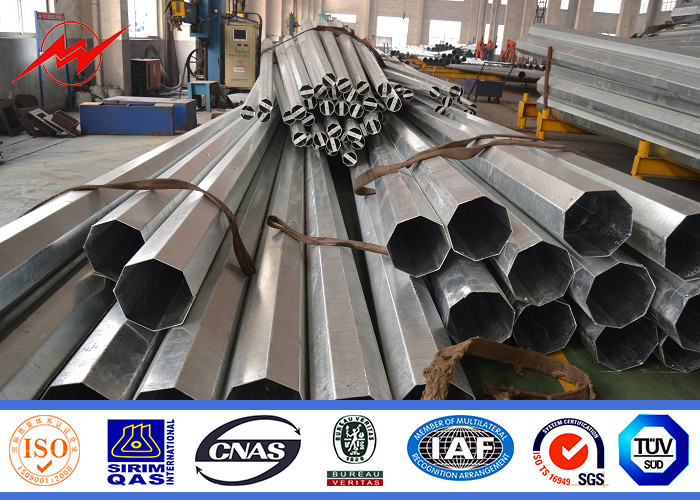

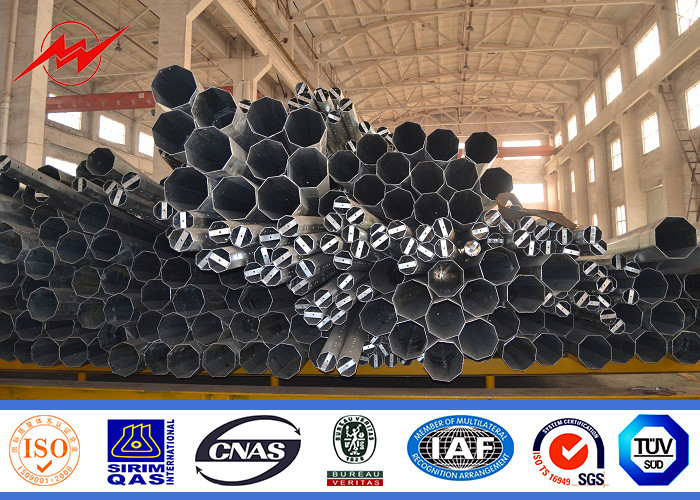

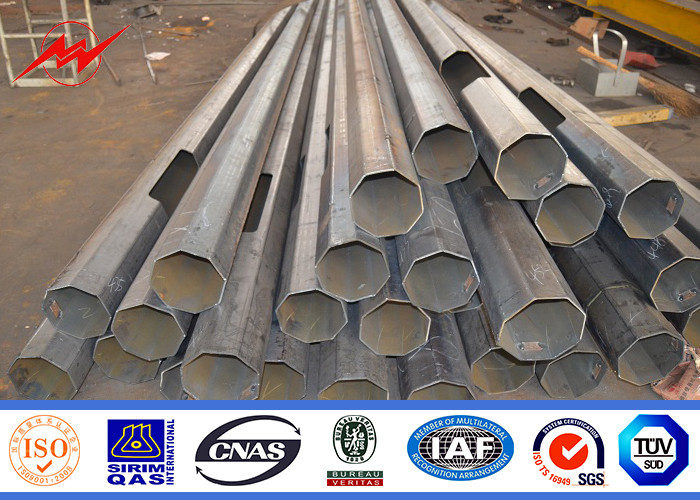

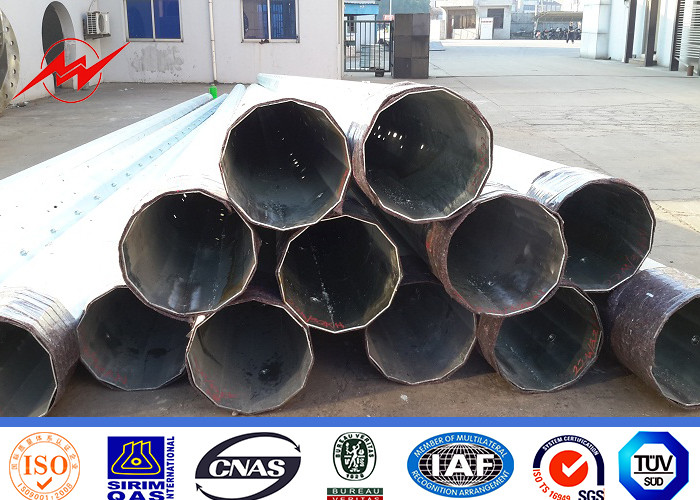

Galvanized 9M 10M 11M Electric Steel Utility Power Pole for transmission line
Specifications:
|
System No. |
AN-SSL-60w/240w/8m |
|
Solar Panel |
2pcs*120Wp 17.5V, polycrystalline PV module, A-class |
|
LED Light Source |
60W DC12V, Bridgelux 50MIL led chips, 120LM/W; IP66 guard level |
|
Controller |
12V/24V 10A, light/time intelligent control, waterproof, IP68 guard level |
|
Battery |
2pcs*12V100AH, sealed lead-acid battery |
|
Battery Box |
PVC material, including PVC cable tube |
|
Pole Set |
8m high, Q235 steel pipe |
|
Working time |
10 hours/day (full power lighting), battery capacity providing 3 continuous days backup in cloudy or rainy condition |

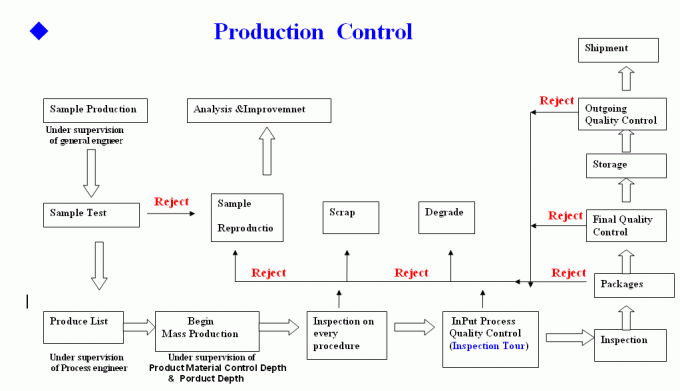

Production Process
Our factory own advance production line, machine including bending calibration machine, hydraulic plate shears machine, shears machine, slitting machine, 208T hydraulic straightener, etc. All the purpose is to produce good quality steel poles.
The fabrication process as cut plate, bending, forming, automatic welding, drill holes, quality check before galvanized, hot dip galvanized and powder coating, finally quality check according by client’s required.
About solar street light advantage:
1. Above solar street lighting system configurations are based on scientific calculation and engineering project experience. They are suitable for areas with annual average peak power sunshine of 4.5hrs per day. Battery capacity is designed for 3 days backup in cloudy or rainy weather.
2. The solar street lighting system configurations can be customized based on client's specific project requirement and weather condition.
3. The batteries are suggested to be placed in battery box and buried in a underground cement pit. In this way, it can avoid overhigh temperature due to sunshine exposure or too cold weather in Winter, wateproof and theftproof, easy for replacement in late period.
4. The pole patterns are standardized type, practical and economical, which can also be customized as per client's specific requirement.
5. All parts are certified by CE and ROHS certificates, meeting Europe standard.
Characteristic
1)Pole height is according to buyer's requirement.
2)Polygonal, round or conical.
3)Single,double or triple arms
4)Material :SS400,Q235.
5)Welding reached national standards.
6)Strict control and test measures ensure the high quality.
7)Hot dip Galvanizing. zinc coated wall thickness≥85um.
8)Wind resistant velocity 36.8m/s (Tantamount Force 12 typhoon).
9)Packing:Bubble film or according to buyer's requirement
10)thickness of the pole:2.5mm~6.0mm
