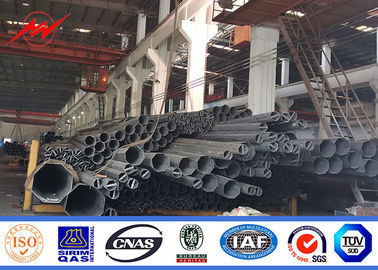

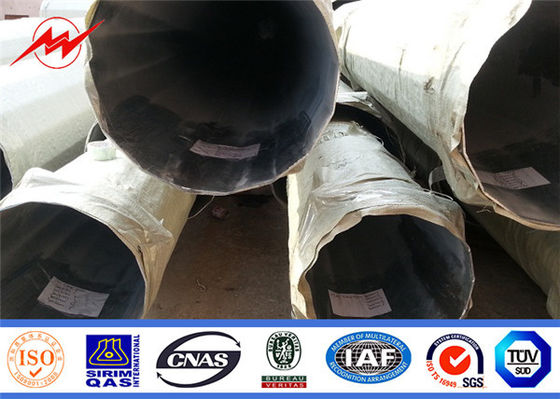

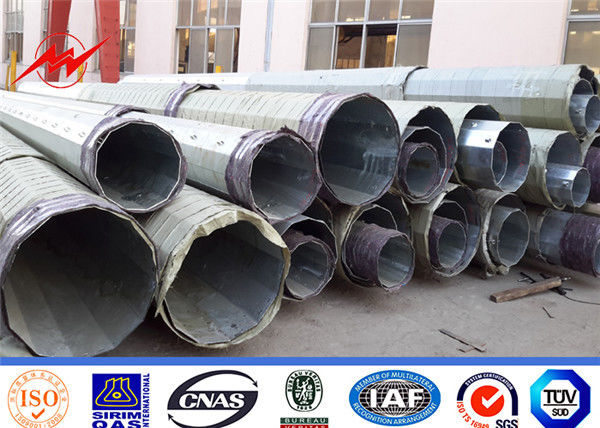

Description
Height:15m
Suit for:power transmission
Material:Q355 high quality Hot rolled steel or any special request is available
Torlance:+-2%
Length of per section:within 14m once forming without slip joint
Welding:AWS D1.1
Wind speed:always 35m/s
Warrenty:15 years
Lifetime:50 years
Design of pole:Against earthquake of 8 grade
Joint of poles:Insert mode,innerflange mode,face to face joint mode

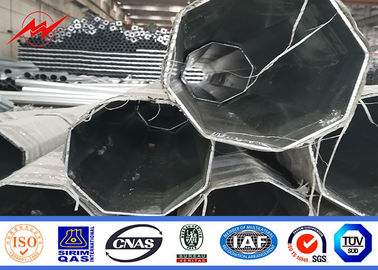

Shape: Round conical; Octagonal conical; Straight Square; Polygonal; Tapered round
Base plate: Base plate is square or round and size as customers' requirement
Price Term: EXW, FOB, CFR or CIF
Steel
The material is in accordance with NF EN 10025
Standard and NF EN 10149 Standard,it has the following property.
- Yield Strength=355N/mm2
- Toughness remains the same under 20 degrees below zero.
- Galvanization is in accordance with NFA35503 Standard Class 1.
Manufacture Tolerance
| The tolerance on thickness |
- 0% to +10% on each sheet |
| Outside Diameter |
- 0% to +2% |
| Length of Sections |
+ 40mm |
| Telescopic Poles |
After assembly telescopic poles shall not exceed of
their stated length by + 75mm for 9m & 11m poles,
+100 mm for 12m poles and +125 mm for 15m
poles |
| Straightness |
Straightness shall not exceed 1/300 of their height. |
| Thickness |
The minimum thickness of the material shall be 3
mm for a length of 3.0 meters section from the
bottom level. |
| Taper/Slope of Poles |
The side taper of the pole shall be between 15 mm
to 25 mm per meter length. |

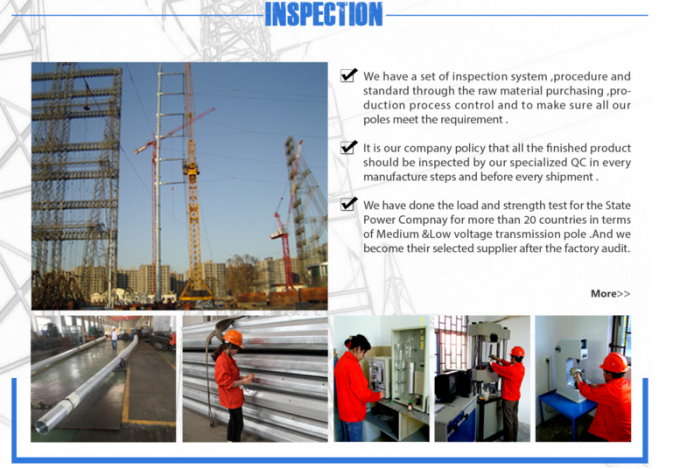

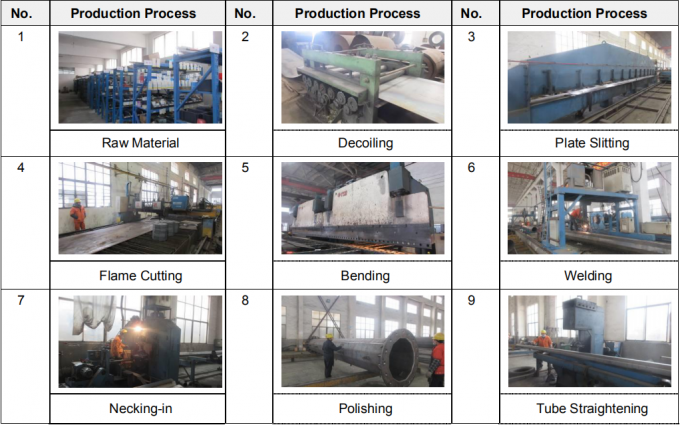

advanced machine
| Machine Name |
Brand &Model No. |
Quantity |
Number of Year(s) Used |
Condition |
| Universal Testing Machine |
WEW-1000BC |
1 |
9 |
Acceptable |
| Hardness Tester |
HBRV |
1 |
10 |
Acceptable |
| Three Element Analyzer |
8618-4A |
1 |
9 |
Acceptable |
| Flaw Detector |
N/A |
1 |
9 |
Acceptable |
| Thickness Tester |
N/A |
1 |
9 |
Acceptable |
| Carbon Sulfur Analyzer |
8608-2F |
1 |
8 |
Acceptable |
Quality Management System Certification
| Quality Management System Certification |
| Certification |
Certified By |
Certificate No. |
Business Scope |
Validity Date |
|
ISO
9001:2015
|
QAC |
00617Q31173R1M |
Design, production and service of electric transmission and transformation steel tuber pole and steel tower, steel tuber,electricity,transformation,support, metal steel tuber pole for lighting |
24/Aug./2017 --
23/Aug./2020
|
|
OHSAS
18001 :2007
|
QAC |
00617S20638R1M
|
Design, production and service of electric transmission and transformation steel tuber pole and steel tower, steel tuber,electricity,transformation,support, metal steel tuber pole for lighting |
24/Aug./2017 --
23/Aug./2020
|
Supplier management
1.Does the company have a supplier assessment procedure?
Yes
2.Does the company have an updated list of approved suppliers?
Yes
3.Has the company established and implemented a standard procedure for purchasing contract review and approval?
Yes, with written standard procedures
4.Does the company keep its supplier assessment reports?
Yes, assessment reports are available for the last 1-3 years
5.Are the company’s purchasing documents sufficient to ensure product safety control and their customers’ requirements?
Yes, the purchasing document includes all the information required
6.Is there a procedure to conduct random product inspections after final packaging?
Yes, with clear standard and written inspection records
But to design the practical poles for customers use, normally we need customer to provide us some parameter, like as following :
- Pole top design load
- Where is the position of the load , the distance from the top
- The wind Speed
- How will the wire distribute
- Pole type with Burial Type or Base Plate type
- The connections mode , use slip joint or flange
- and others we can further more discuss when we need
|
