Outdoor Square Galvanized 12m Parking Lot Light Pole With Double Arms

Large Image : Outdoor Square Galvanized 12m Parking Lot Light Pole With Double Arms

Product Details:

Place of Origin:	JIANGSU,CHINA
Brand Name:	milky way
Certification:	ISO9001:2015
Model Number:	69KV

Payment & Shipping Terms:

Minimum Order Quantity:	ONE CONTAINER
Price:	USD 130-180POLE
Packaging Details:	The normal package is container(Size: LWH). Our poles as normal cover by Mat or straw bale at the top and bottom and wood between the poles to avoide the damage on the galvanization of the pole , anyway also can following by client required , The lo
Delivery Time:	ALWAYS 20DAYS
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000POLES/MOUTH

Contact Now

Detailed Product Description

MATERIAL:	S355JR	APPLICATION:	Electricity Distribution
THICKNESS:	2.5-10MM	SHAPE:	POLYGON
GALVANIZATION:	ASTM A123,average Coationg Not Less Than 85um	WELDING:	AWS D1.1,penetration 100%
LIFETIME:	50 YEARS	WIND SPEED:	160KM/H
ULTIMATE TENSILE STRENGTH:	490-620MPA
Highlight:	12m parking lot light pole , double arms parking lot light pole , 12m galvapole street lighting pole

12m Outdoor Square Galvanized Parking Lot Light Pole With Double Arms

Specification

Material:	high quality Q235 hot rolled steel
Mounting Height:	3-12m or according to the requirements of customers
Shape of pole:	Round,conical,octagonal,square,mid hinged,polygonal shafts are made of steel sheet that folded into required shape and welded longitudinally by automatic welding machine
Brackets:	Single or double brackets are in the shape and dimension as per customers requirement
Base plate:	Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement
Ground mounted:	The length buried underground as per customers requirement
Galvanizing:	Hot dip galvanization with thickness of 80-100µm average
Powder coating:	Pure polyester powder painting, color is optional

11m Outdoor Square Galvanized Parking Lot Light Pole With Double Arms 0

Product features:

1. Imported LED chip, UV and infrared, light-efficient, more stable.

2. LED packaging using high thermal conductivity of patented technologies and patented three-chamber cooling technology to effectively reduce the light resistance, the clip junction temperature can be controlled at 60 degrees below, to ensure the lamp life of over fifty thousand hours or more chips.

3. The use of ultra-high thermal conductivity aluminum radiator, corrosion-resistant surface coating superconducting hot metal paint, to ensure faster heat generated LED light source distribution.

4. Use of patented technology and specialized secondary optical lens specially designed for LED specturm and high light transmission tempered glass lamp shade, to ensure that lighting a light rate of 85% or more.

5. Wide input voltage AC drive voltage constant current, ensure that the lighting for different countries and regions, high power factor, harmonic small. Constant current driver can adjust the brightness according to different time slots.

6. Lamp appearance by the professional aesthetic design, simples, elegant, fashion.

7. Applications: highway, main roads secondary roads, alip roads and so on.

11m Outdoor Square Galvanized Parking Lot Light Pole With Double Arms 1

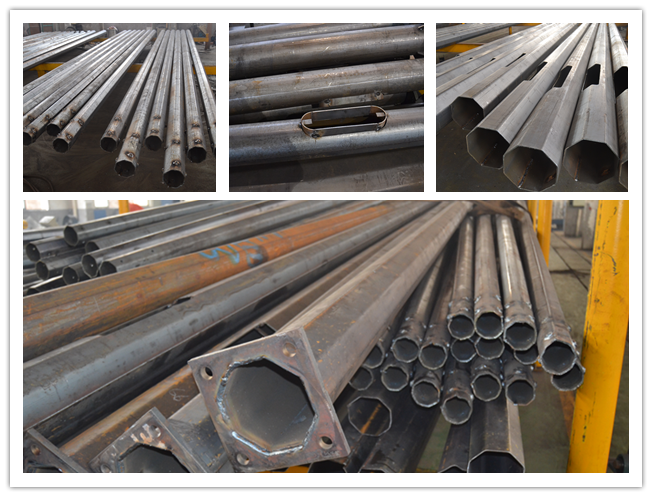

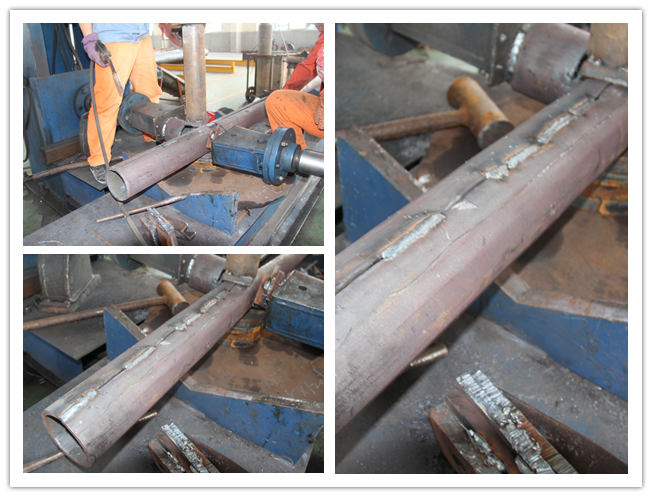

Production Process

Material preparation-bending-welding-repair and grinding-reforming-flushing-fix bottom plate-welding bottom plate-opening door-welding door strip, electric strip, and locking-bending arm-hot dip galvanization-plastic powder painted-inspection-shipment.

11m Outdoor Square Galvanized Parking Lot Light Pole With Double Arms 2
