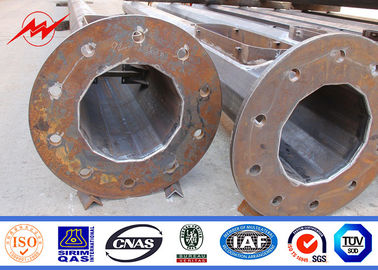

Outside Parking Lot Bitumen High Mast Tower 3mm 25m with Round Lamp Panel

Large Image : Outside Parking Lot Bitumen High Mast Tower 3mm 25m with Round Lamp Panel

Product Details:

Place of Origin:	China
Brand Name:	MilkyWay
Certification:	ISO9001/BV/
Model Number:	High Mast Light

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	As customer request
Delivery Time:	20 working days after received your payment
Payment Terms:	T/T, L/C at sight
Supply Ability:	300pcs per day

Contact Now

Detailed Product Description

Product Name:	High Mast Light	Application:	Parking Lot Lighting
Wind Speed:	30m/s	Galvanization Thickness:	Average 86μm
Thickness:	1 Mm To 30 Mm	Lift Time:	50 Years
Highlight:	mast light tower , solar power light pole

Outdoor Bitumen 3mm 25m High Mast Light with Round Lamp Panel for Parking Lot

Specifications:

Specification:	20-50 meters high mast pole
Type	high mast pole
Shape	conical, hexagonal and octagonal
Material	Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 , SS400, SS490ST52
Torlance of dimenstion	-0.02
Design Load in Kg	300~ 1000 Kg appliced to 50cm from the to pole
Surface treatment	Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Standard	Octagonal Conical tapered column Certified by SIRIM QAS INTERNATIONAL. Approved by JABATAN KERJA RAYA MALAYSIA. Conforms to Standard: Pole design : BS EN 40 Material : BS EN 10025 S275 / JIS G3101 SS400 Welding : BS 5135 Galvanizing : BS 729 / ISO 1461 ASTM A 123
Length of per section	Within 14m once forming without slip joint.
high mast pole suit for	city square,wharf,stadium
Option of high mast pole	Height from 20m to 35m Flange mounted or planted type
Production Process of high mast pole	Raw material test → Cutting →Molding or bending →Welidng (longitudinal )→Dimension verify → Flange welding →Hole drilling →Calibration →Deburr→ Galvanization or powder coating ,painting →Recalibration→ Thread →Packages

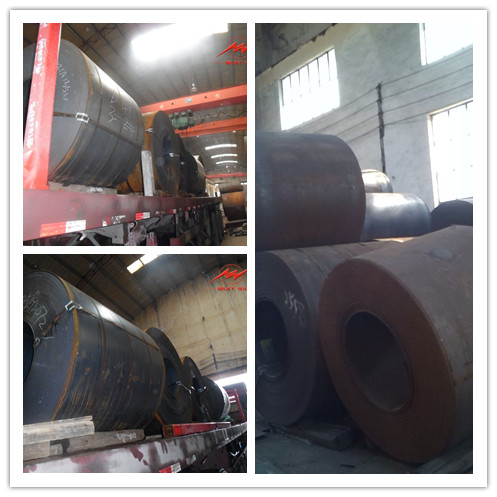

Descripition of material:
1. Poles are made by the high-quality metal plants,which were molded into the multi-row cone- shaped vertical steel barwith hot galvanized anti-corrosion treatment
2. Light plate frame is made by high-quality stainless steel
3. Fastened bolts and nuts of stainless steel

Outside Parking Lot Bitumen High Mast Tower 3mm 25m with Round Lamp Panel 0

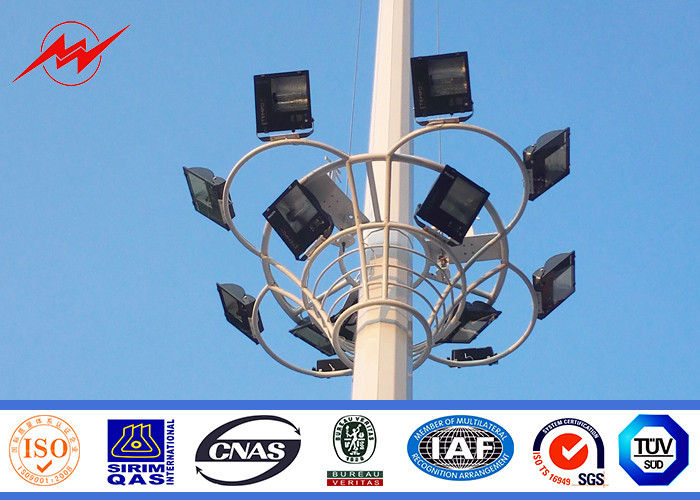

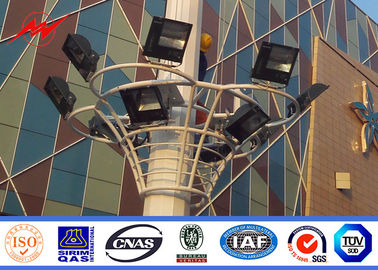

Feature:

Special designed for stadium to provide high-power, large- area lighting for facilities; Lighthouse is devided into fixed or lift, fixed poles set up an escalator inside for i nstallation and maintenance purposes

Light source :400w-1000w sodium light

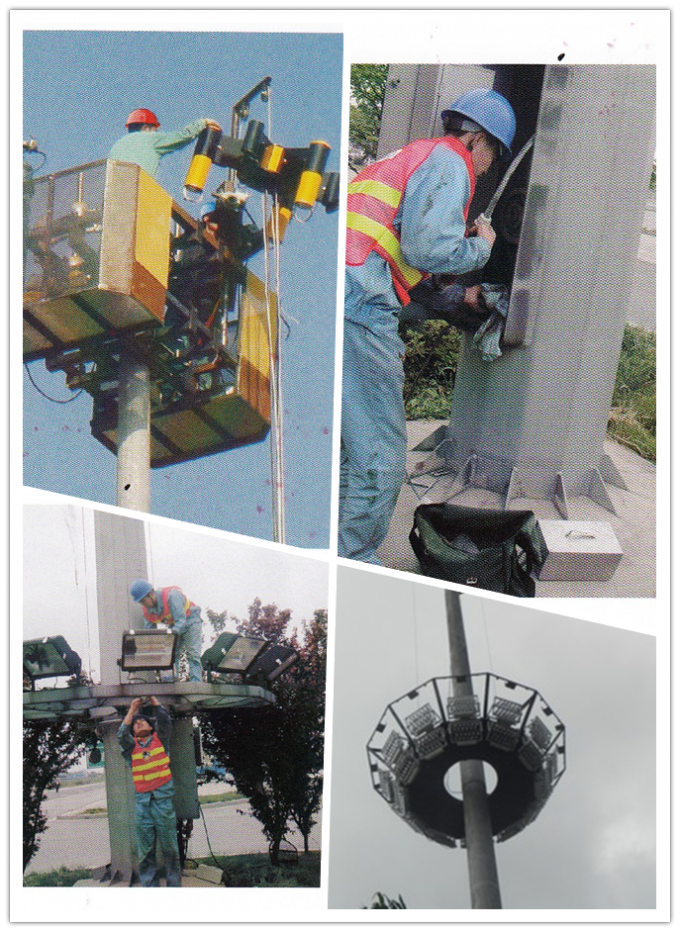

Installation:
1. high-pressure sodium lamp with external ballast and Triggers installed in light tray.
2. when replacing or repairing light and other electrical appliances, you should use special wrench to open it.
3. control box installed at the poles or the lower part of the poles
Outside Parking Lot Bitumen High Mast Tower 3mm 25m with Round Lamp Panel 1

Specific explanation:
1.please install according to requirements of the company
2.make sure that the light body touches the ground during installation.

Outside Parking Lot Bitumen High Mast Tower 3mm 25m with Round Lamp Panel 2
