Product Details:
Payment & Shipping Terms:
|
Product Name: | Steel Power Utility Poles | Application: | Power Transmission Line |
---|---|---|---|
Welding Standard: | AWS D1.1 | Surface Treatment: | Hot Dip Galvanized |
Galvanization Standard: | ASTM A123 | Warranty Time: | 15 Years |
Highlight: | electrical transmission poles,high voltage pole |

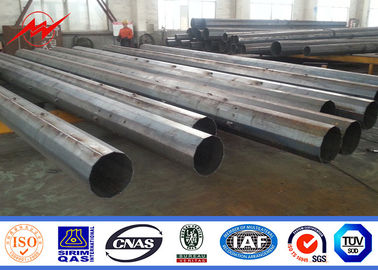

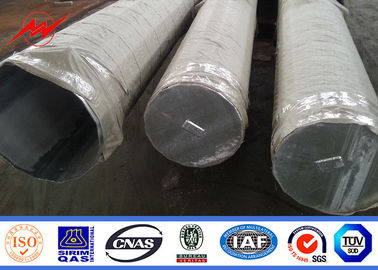

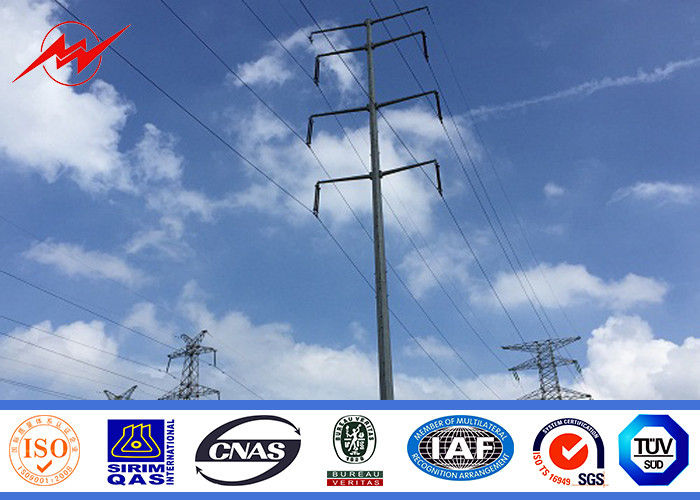

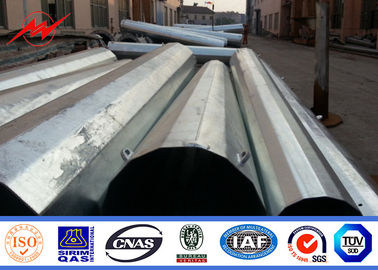

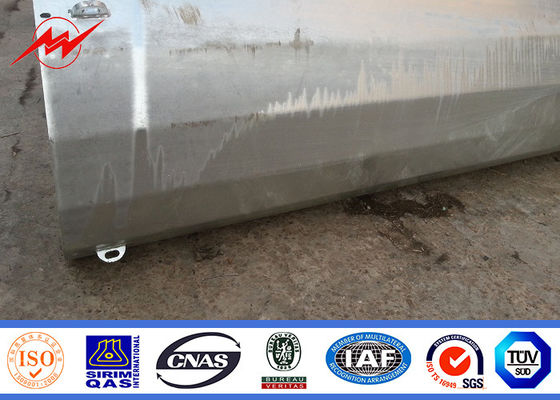

Polygonal 10KV-550KV GR50 Steel Power Utility Pole with Galvanization
Specifications:
Types Length |
45ft | 50ft | 55ft | 60ft | 65ft | 70ft |
13.75m | 15.25m | 16.80m | 18.30m | 19.85m | 21.35m | |
B ( 0°-2°) | ||||||
Top diameter (mm) | 200 | 200 | 200 | 200 | 200 | 200 |
Butt diameter (mm) | 345 | 370 | 395 | 415 | 435 | 455 |
Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
E ( 2°-15°) | ||||||
Top diameter (mm) | 200 | 200 | 200 | 200 | 200 | 200 |
Butt diameter (mm) | 545 | 585 | 625 | 660 | 700 | 740 |
Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
C ( 15°-30°) | ||||||
Top diameter (mm) | 250 | 250 | 250 | 250 | 250 | 250 |
Butt diameter (mm) | 600 | 645 | 690 | 730 | 770 | 805 |
Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
D ( 30°-90°) | ||||||
Top diameter (mm) | 300 | 300 | 300 | 300 | 300 | 300 |
Butt diameter (mm) | 680 | 730 | 725 | 765 | 755 | 790 |
Thickness (mm) | 6 | 6 | 7 | 7 | 8 | 8 |
HS ( 0°-2°) | ||||||
Top diameter (mm) | 200 | 200 | 200 | 200 | 200 | 200 |
Butt diameter (mm) | 340 | 360 | 385 | 400 | 420 | 440 |
Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
HT ( 2°-15°) | ||||||
Top diameter (mm) | 200 | 200 | 200 | 200 | 200 | 200 |
Butt diameter (mm) | 485 | 520 | 550 | 580 | 615 | 645 |
Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
3T ( 15°-30°) | ||||||
Top diameter (mm) | 250 | 250 | 250 | 250 | 250 | 250 |
Butt diameter (mm) | 520 | 540 | 565 | 595 | 615 | 640 |
Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
3D ( 30°-90°) | ||||||
Top diameter (mm) | 300 | 300 | 300 | 300 | 300 | 300 |
Butt diameter (mm) | 585 | 620 | 650 | 680 | 715 | 765 |
Thickness (mm) | 6 | 6 | 6 | 6 | 6 | 6 |
Steel
All of our material are purchased from famous mill factory to assure the quality
A mill certificate issued by the mill factory with stamp and signature must be provided before unload the material in our factory ,otherwise we have our reason to refuse the material .
Before put into production ,all the material must pass the chemical and physical analysis to make sure that they have meet the requested strength and component.

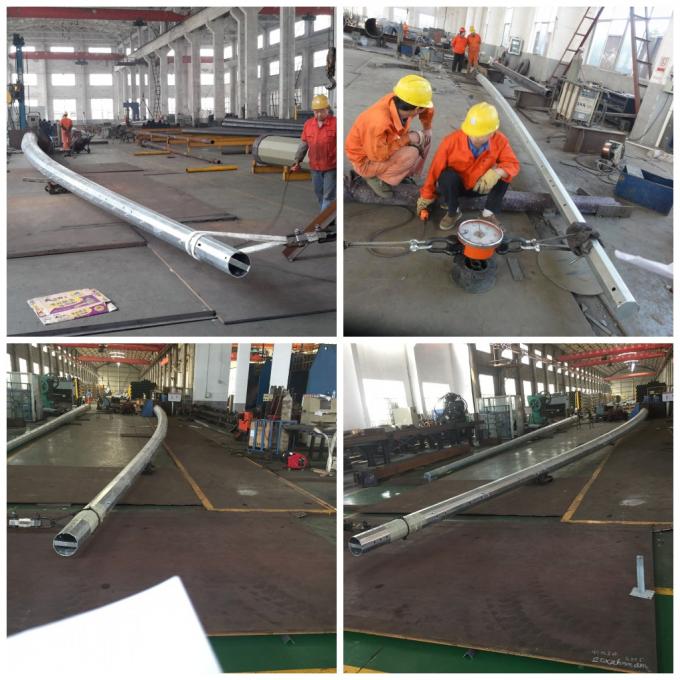

Quality Control
We strictly follow the standard of ISO9001-2008. Quality is in the first place at every stage of production to ensure the
product compliance to the specification/standards. Careful inspections are carried out by highly trained inspection
engineers during every procedure from raw material stage to finished product and delivery.
Company Introduction:
Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.

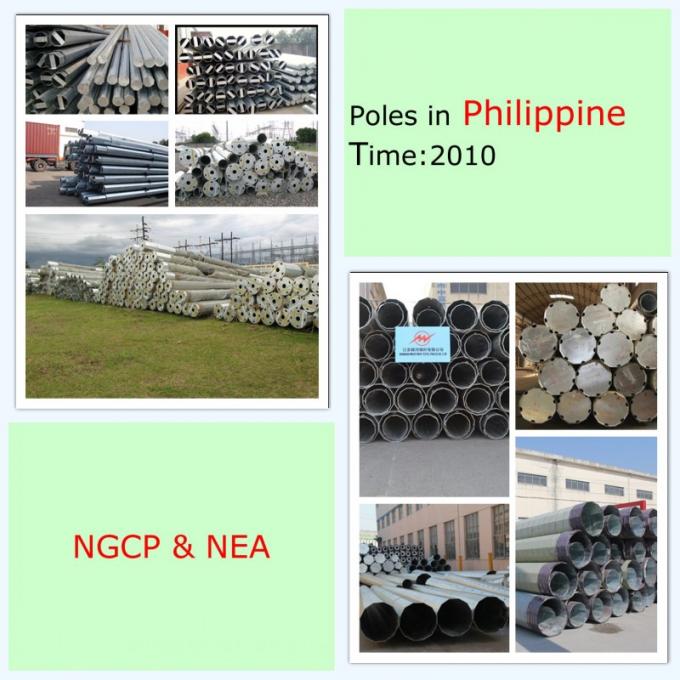

We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.

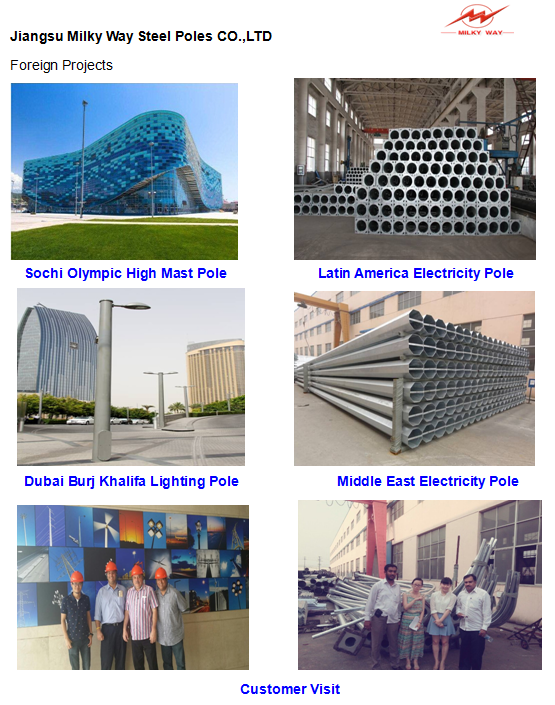

We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.
