Product Details:
Payment & Shipping Terms:
|
| Thickness: | 1mm To 30mm | Shape: | Conoid, Multi-pyramidal,Columniform, Polygonal Or Conical |
|---|---|---|---|
| Power: | 10kv~550kv | Suit For: | Electricity Distribution |
| Wind Speed: | 160km/h, 30m/s | Welding Standard: | AWS D 1.1 |
| Highlight: | electric utility poles,steel utility poles |
||

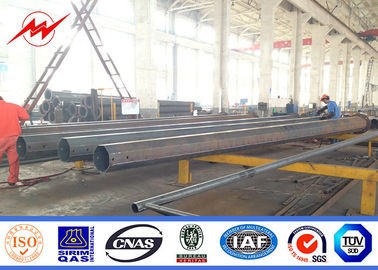

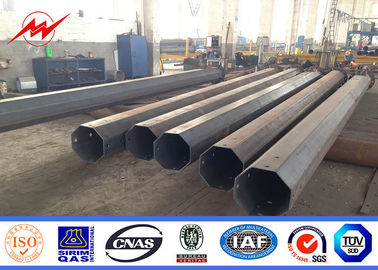

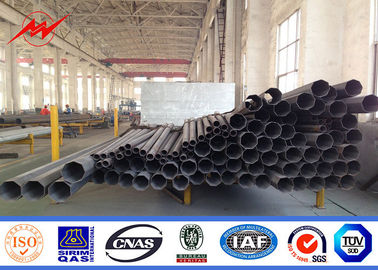

Polygonal Or Conical Galvanized Steel Pole Shockproof 1mm To 30mm Thickness
|
GENERAL SPECIFICATIONS FOR STEEL POLE
|
|||
|
Type
|

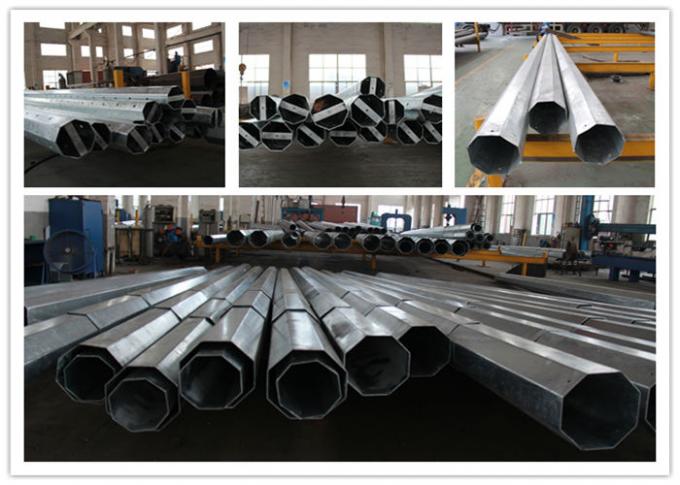

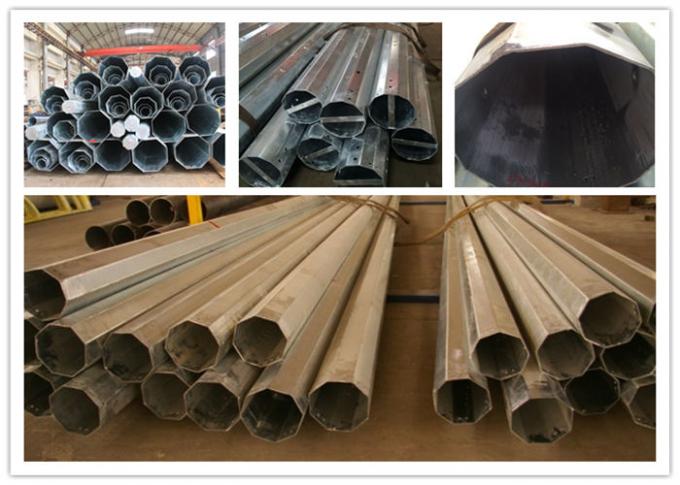

octagonal conical 20ft galvanized steel tubular pole distribution poles column
|
||
|
Suit For
|
Electricity distribution
|
||
|
Shape
|
Conoid ,Multi-pyramidal,Columniform,polygonal or conical
|
||
|
Material
|
Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490 |
||
|
Power
|
10kv~550kv
|
||
|
Design Load in kg
|
300~1000kg applied to 50cm from the top of the pole
|
||
|
Surface Treatment
|
Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
|
||
|
Joint of the poles
|
Insert mode,innerflange mode,face to face joint mode .
|
||
|
Design of pole
|
Against earthquake of 8 grade
|
||
|
Wind Speed
|
160km/h 30m/s
|
||
|
Standard
|
ISO 9001
|
||
|
Welding
|
We has past flaw testing.Internal and external double welding makes the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1 |
||
|
Thickness
|
1mm to 30mm
|
||
Mechanical Property
The metal supports are designed to withstand the nominal force F and the pressure of the wind V applied
at 0.25m from the top. Under these loads, the safety factor with respect to the elastic limit of the steel is la
rger than 1.8. The post also resists a torque equal to (F+V) ×1m. Tests shows the load intervened when
breaking is around 2 times of design load.
Galvanization
Standard: NFA91121
Average thickness of the galvanization: Not less than 86
Manufacturer Tolerance
- Component Length: -25mm to 75mm
- Straightness: 2mm/m
- Twisting degree: 1̊ per 3 meters length
- Ovalisation : Maximum is 3%
- The average diameter : +/-0.5%
-Slip length: +/-150mm
Standard Accessory
- Top plate
- Base plate
- Bottom Strip
- Standard Hole
- Climbing Rung
- Anchor bolt
- Bitumen Protection
- Painted Marking
- Removable Ladder
The information to inquiry or purchase
- Steel pole height and force
- Cross arm type and length, the position to install in the steel pole
- The method to fix the cross arm (use Bolt to connect or use one or two template to weld in the steel
pole to install the cross arm)
- Safety factor of the steel pole
- Wind speed
- Type of climbing rung
- Destination port
- Others
