Product Details:
Payment & Shipping Terms:
|
| Type: | High Voltage Cable,medium Voltage Cable | Surface: | PVC Or XLPE Insulation |
|---|---|---|---|
| Voltage: | 0.6kv/1KV | Model Number: | YJV/YJLV/VV/VLV/KVV/JKV/JKLV/JL/YJHLV6 |
| Standard: | ISO9001 JB8734.1~5-1998 | Armour: | YES |
| Coductor: | Copper Or Aluminum Alloy | ||
| Highlight: | electrical power cable,cables and wires |
||

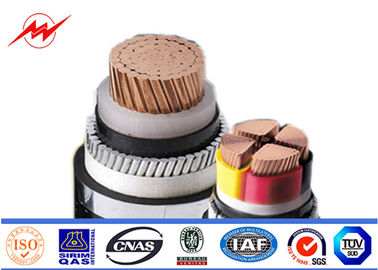

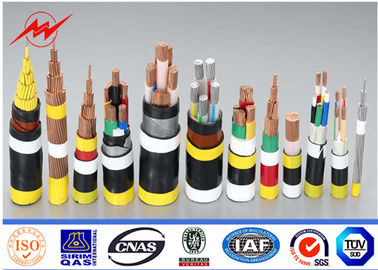

0.6/1kv copper or aluminum conductor xlpe cable with CCC certificate
Specifications:
|
sheath: |
XLPE |
| Common Model name : | VV Copper/Aluminum core ,XLPE insulated ,XLPE sheathed power cable
VLY Copper/Aluminum core, XLPE insulated ,PE sheathed power cable YJL XLPE insulated ,PVC/PE sheathed power cable KVV PVC(XLPE)Insulated and sheathed Control Cable JKV copper/aluminum core PVC insulated aerial cable YJHLV XLPE insulated ,thin steel wire armored ,PVC/PE sheathed cable |
| Color: | BLACK |
|
Outer Sheath:INSULATION |
XLPE |
| THICKNESS(mm) : | 1.0—10 |
|
Conductor |
99.5% Pure Oxygen Free Copper or Aluminum alloy |
|
Voltage : |
0.6kv/1kv |
|
No. of cores: |
1~5 cores,3C+1E,4C+1E,3C+2E |
|
Section of conductor(mm ²): |
1.5~630 mm2 |
|
Application : |
Non-armored PVC cable are suited for laying indoors ,In cable trench ,On cable racks and in pipes. Unable bear external pressures and tensions. |
|
Packing: |
100 meters per roll or 500 meters per roll or as per requirement |
|
Delivery time: |
10—20 days |
|
Payment Terms: |
L/C,D/A,D/P,T/T, Western Union |
Product features:
1 No necessary to heat up in advance while installing above 0℃.
2 Max. continuous normal operating Temperature: 90℃ (XLPE Sheathed cable).
3 Max. Permissible temperature at short circuit (5s. at longest): 250℃.
4 Permissible bending radius:
Single core: ≥20(d+D)±5%.
Three-core:≥15(d+D)±5%(D is the actual overall diameter of cable, and d is the actual overall diameter of conductor).

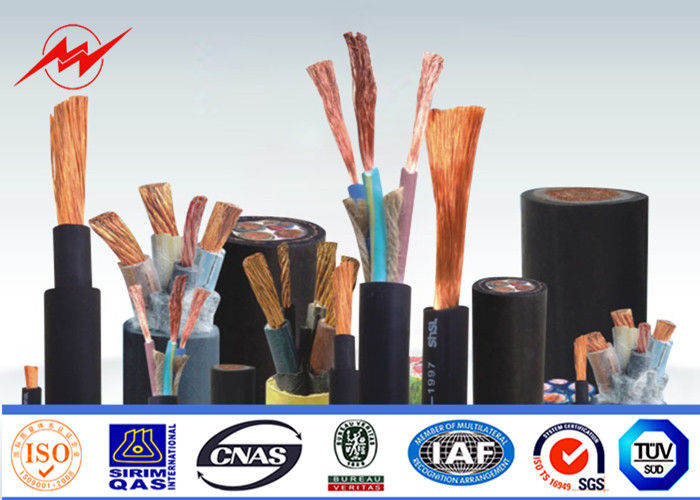

OUR HOT SAIL PRODUCTS
Bare conductors(AAC,ACSR,AAAC,ACAR,Aluminum Clad Steel Conductor);
Aerial Bundled Cable (ABC Cable);
Power cable,Electrical wire cable,
Armored cables, low voltage cooper conductor XLPE insulated PVC sheathed power cable
Control cables,
Rubber insulated cables, PVC insulated wires and cables,
Battery cables,Instrument cables, Coaxial cables,Flat cables,
Welding cables,House wire,Special Cables etc.

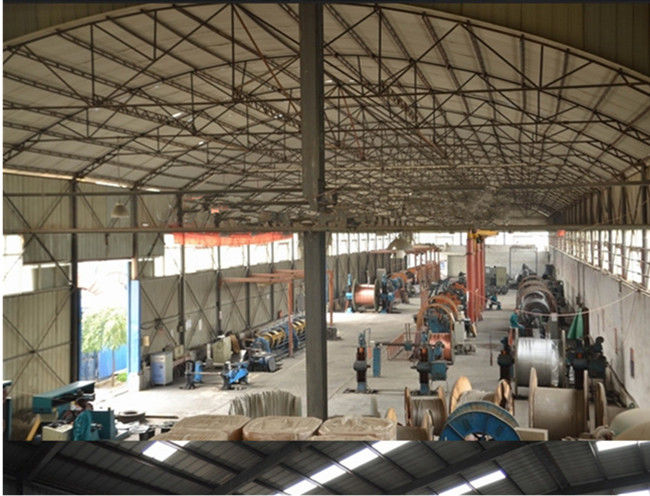

OUR SERVICES
As you know there are so many cable manufacture, we are one of the biggest manufacture in chinamainland.
We will give you a perfect shopping experience . If you need visit our factory , we will meet you at the airport or
train station.
Also we can offer other service Custom Merchandise:we can make cable as your need include the color ,size
and so on.we also offer OEM .
Complete Course Tracking:we can offer you the service from the business begin to you get the cable and use it .
Cable sample : we can offer the sample free
