Product Details:
Payment & Shipping Terms:
|
| Material: | Q235 Q345 GR50 GR65 | Certification: | ISO BV |
|---|---|---|---|
| Height: | 25ft 30ft 35ft | Wind Speed: | 160KM/h |
| Thickness: | 4mm | Power: | 10-550KV |
| Delivery Way: | By Sea | Load Time: | 2 Weeks After Confirmed Order |
| Highlight: | Galvanizing Welding Power Steel Poles,Q345 Welding Power Steel Poles,20mm Welding Steel Poles |
||
Descripition of material:
1. Poles are made by the high-quality metal plants,which were molded into the multi-row cone-shaped vertical steel barwith hot galvanized anti-corrosion treatment
2. Light plate frame is made by high-quality stainless steel
3. Fastened bolts and nuts of stainless steel
Specification:
| Place of origin | China |
| Material | SteelQ235,Q345 |
| Application | Garden, Square, Street, Stadium etc. |
| Pole’s height | 3m-15m or as customer’s requirement |
|
Shape of pole |

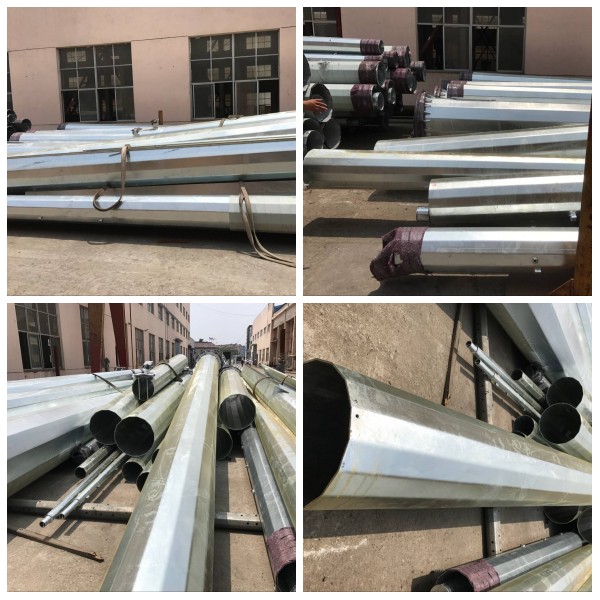

Tapered Round, Shafts are made of steel sheet that folded into required shape and welded by automatic welding machine |
| Brackets/ Arm | As per customer’s requirement |
| Wall thickness | 2.5mm to 20mm |
| Welding |
Using automatic internal and external double welding makes the welding beautiful in shape. And confirms with international welding standard. . |
| Base plate mounted |

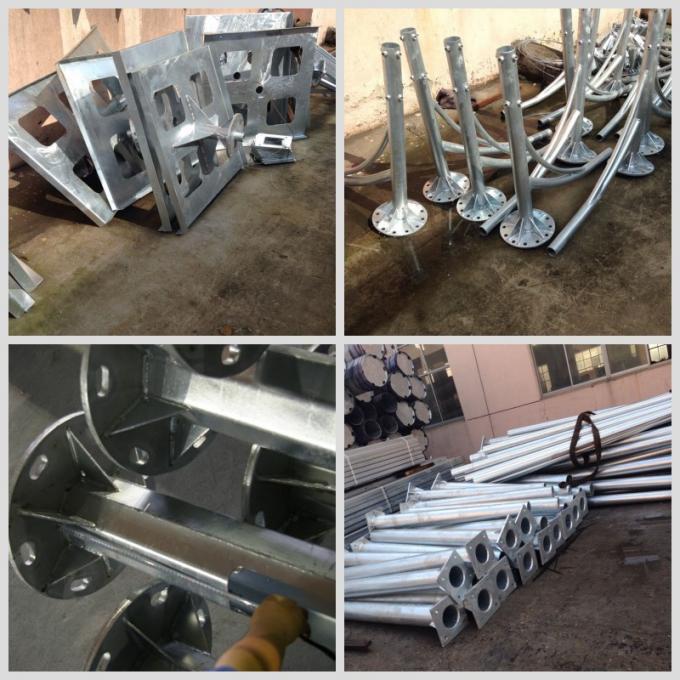

Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customer’s requirement. |
| Ground mounted | The length buried underground as per customer’s requirement. |
| Galvanizing |
Hot dip galvanization with Chinese standard GB/T 13912-2002 or American standard ASTM A123, IS: 2626-1985. |
| Powder coating |
Pure polyester powder painting, color is optional according to RAL color standard. |
|
Jointing |
Jointing of pole with insert mode, face to face joint mode . Every lighting pole has a unique code. All sections belonging to one pole have the same code, so it’s easy to assembly. |
| Wind Resistance | Against wind pressure of 160Km/h |
| Earthquake Resistance | Against earthquake of 8 grade |
|

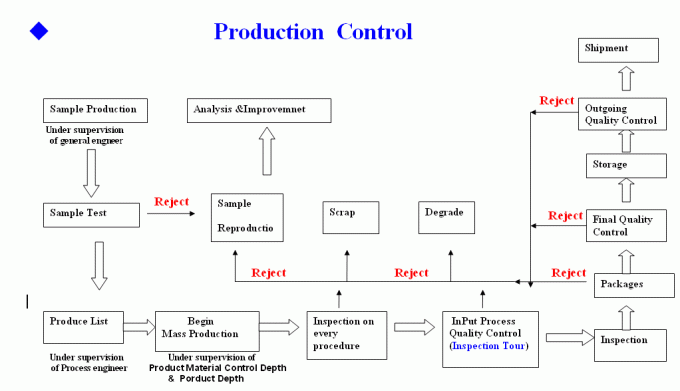

Quality Control |
We strictly follow the standard of ISO9001-2008. Quality is in the first place at every stage of production to ensure the product compliance to the specification/standards. Careful inspections are carried out by highly trained inspection engineers during every procedure from raw material stage to finished product and delivery. |
| Certificates | ISO9001:2008 etc. |
Production Flow:
The production process:Row material test → Cutting →Molding or bending →Welding (longitudinal )→Dimension verify →Flange welding→Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages
