Product Details:
Payment & Shipping Terms:
|
| Product Name: | Electric Power Pole | Power: | 10KV-220KV |
|---|---|---|---|
| Material: | ASTM A572 Gr65 | Surface Treatment: | Galvanization And Bitumen |
| Glavanization Standard: | Average Not Less Than 86um | Wall Thickness: | 1mm-36mm |
| Highlight: | conical steel tubular pole,ASTM A572 steel tubular pole,10KV steel tubular pole |
||

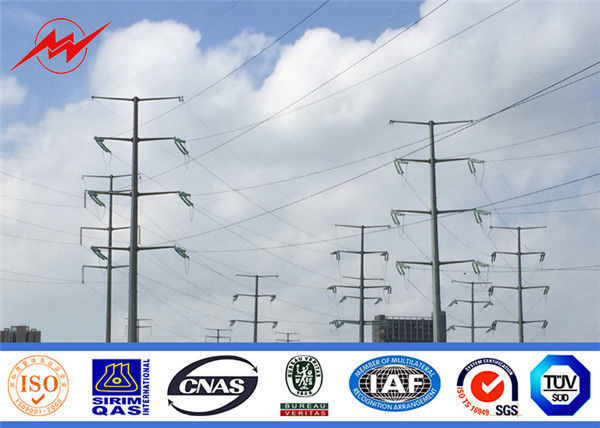

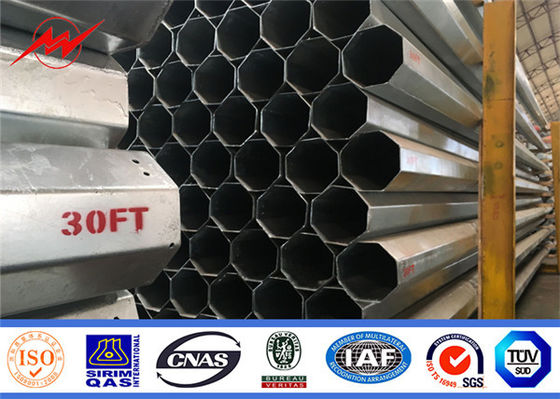

73KM Transmission Line Galvanized Electric Steel Pole with Yield strength 450Mpa
Steel Material
All of our material are purchased from famous mill factory to assure the quality
A mill certificate issued by the mill factory with stamp and signature must be provided before unload the material in our factory ,otherwise we have our reason to refuse the material .
Before put into production ,all the material must pass the chemical and physical analysis to make sure that they have meet the requested strength and component.
| Steel Material Grade | ||||||
| China GB | America ASTM ASME | Japan JIS | Europen EN |
Gemany DIN |
England BS |
International ISO |
| 16Mn 14MnNd Q345(A.B.C.D.E) |
A572MGr.50 A633MGr.C A633MGr.D |
SM490A SM490B SM490C |
S355JR S355JOS 355J2G3 S355J2G 4S355K2 G3 S355K2G 4S355N S355NL |
St52-3 | 50A 50B 50C 50D 50DD |
E355DD E355E Fe510B Fe510D |
| WH60/Q460 ( C.D.E) |
A572MGr.65 | SM570 | S460N S460NL |
StE460 | 55C 55E |
E460C E460D |
| Q235 ( A.B.C.D) Q275 20 25 30 35 40 45 50 55 50Mn |
A283MGr.C A283MGr.D 1020 1025 1030 1035 1040 1045 1050 1055 1053 |
SS400 SM400( A B) SS490 S20CS22C S25C S28C S30C S33C S35C S38C S40C S43C S45C S48C S50C S53C S55C S58C SWRH52B |
S235JR S235JO S235J2G 3 1C22 1C25 1C30 1C35 1C40 1C45 1C50 1C55 2C50 |
St37-2 St37-3 1C22 1C25 1C30 1C35 1C40 1C45 1C50 1C55 2C50 |
40A 40B 40C 40D 1C22 1C25 1C30 1C35 1C40 1C45 1C50 1C55 2C50 |
Fe360 ( A.B.C.D) Fe430A C25E4 C30E4 C35E4 C40E4 C45E4 C50E4 C55E4 SL, SM |
Specifications:
| Item | TIP DIAMETER | BUTT DIAMETER | THICKNESS | Pole Shape |

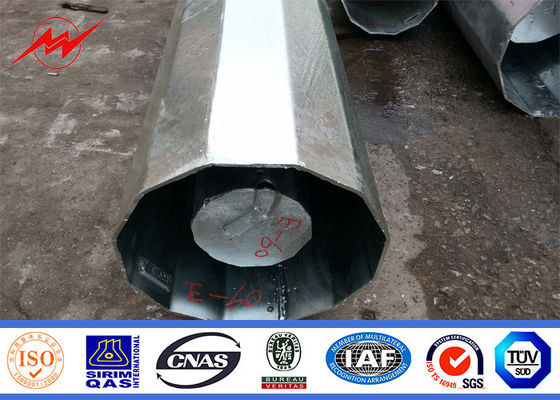

| (m) | (MM) | (MM) | (MM) | 8 sides |
| 11.8m/5KN | 150 | 355 | 3 | |
| 11.8m/6.5KN | 180 | 400 | 3 | |
| 11.8m/8KN | 190 | 440 | 3 | |
| 11.8m/10KN | 190 | 450 | 3.5 | |
| 11.8m/12.5KN | 220 | 500 | 3.5 | |
| 11.8m/16KN | 230 | 560 | 3.5 | |
| 11.8m/20KN | 240 | 585 | 4 | |
| 11.8m/25KN | 260 | 655 | 4 | |
| 11.8m/32KN | 260 | 660 | 5 | |
| 11.8m/40KN | 260 | 670 | 6 | |
| 16m/5KN | 150 | 375 | 4 | |
| 16m/6.5KN | 180 | 420 | 4 | |
| 16m/8KN | 190 | 460 | 4 | |
| 16m/10KN | 190 | 510 | 4 | |
| 16m/12.5KN | 220 | 525 | 4 | 12 sides |
| 16m/16KN | 230 | 585 | 4 | |
| 16m20KN | 240 | 585 | 5 | |
| 16m/25KN | 260 | 655 | 5 | |
| 16m/32KN | 260 | 670 | 6 |
Design and Detail
Lofting and design software :We have transmisson power pole design software which can help us design all kinds of steel pole ,at the same time ,the TMA and LMA are adopted by us to provide the design the drawing accuratly
Manufacturing Process

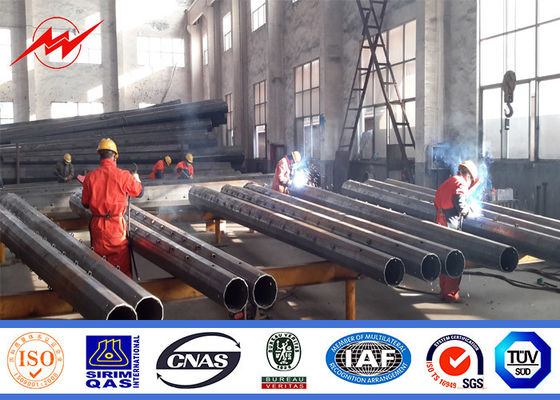

Our factory owns advanced production lines and machines including bending calibration machine, hydraulic plate shears machine, shears machine, slitting machine, 208T hydraulic straightener, etc. All the purpose is to produce good quality steel poles.

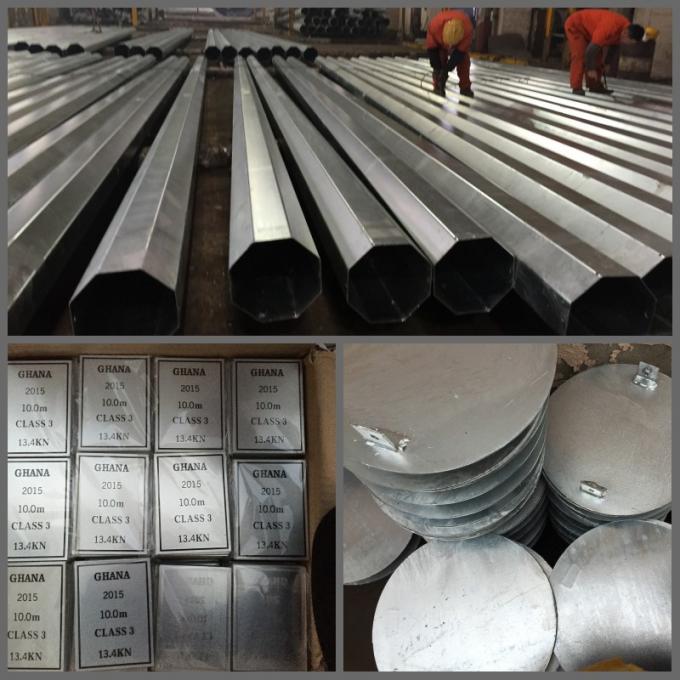

After fabrication process as cutting plate, bending, forming, automatic welding, drilling holes, we get poles checked before galvanized, hot dip galvanized and powder coating and finally get poles checked according to client's requirements before delivery.
FAQ
1. Price Term: EXW, FOB, CFR or CIF.
The price includes pole shaft, base plate, cross arm and anchor part.
Shipping seaport: Shanghai Seaport. For FOB, CFR or CIF price, please specify which exact model you need, and tell us your order quantity so that we can calculate the local transport charges and sea freight.
2. MOQ: 1 sets for Customized
3. Payment: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.
4. Delivery time : goods can be ready for shipment within 10 workdays after receiving deposit.
5. Warranty : 30 years
6.Surface treatment :hot dip galvanization
