Product Details:
Payment & Shipping Terms:
|
| Name: | 132KV Electrical Power Pole Q345 Bitumen | Type: | 132KV Electrical Power Pole Q345 Bitumen |
|---|---|---|---|
| Material: | ASTM 572 Grade 50 With Yieled Strength No Less Than 345mpa | Shape: | Octagonal |
| Height: | 8-45m | Galvanization Standard: | Hot Dip Glavanized Inaccordance With ASTM A123 With Thickness ≥ 86μm |
| Thickness: | 3mm | Welding Standard: | AWS D1.1 With Penatration Rate No Less Than 80%-100% |
| Joint Of Poles: | 50 Years | Warranty Period: | Overlap / Flange/ Direct Burial |
| Highlight: | steel power pole,transmission line poles |
||
132KV Electrical Power Pole Q345 Bitumen for Transmission Line Project
| Material: | ASTM 572 grade 50 with yield strength not less than 345mpa |
| Yield strength of Material: |
Minimum yield strength>=235n/mm2 for Q235, S235 and SS400 Minimum yield strength>=345n/mm2 for Q345 S355 and Gr 50 |
| Pole’s height: | 3m –15m |
| Length of one part | Within 16m once forming without slip joint |
| Wall thickness: | 2.3mm-30mm |
| Pole's Shape Can be made: |
Round, Polygonal, Taper Octagonal, Taper round, Round conical, Taper Square, Square. |
| Arm type can be made: | Single arm, Double arm, Tri-arm, Four-arm |
| Arm Diameter: |
Diameter as 42mm, 48mm, 60mm, 76mm and etc, can fit to any diameter’s lamps. |
| Power: | 250W to 400W |
| Welding |
AWS D1.1 with penatration rate no less than 80%-100% |
| Galvanization: |
Hot dip galvanization with thickness of 80-100µm average in accordance with Chinese standardGB/T 13912-2002 or American standard ASTM A123, ISO: 2626-1985. |
| Manufactury Capacity Per Day: | 250 |
|
Wall thickness Tolerance:
|
+- 0.1mm from 2.3mm to 4mm. +- 0.2mm from 5mm to 20mm. +- 0.5mm from 22mm to 30mm |
| Painting color: | (RAL)Color card or Refer to client’s requirement |
| Surface treatment 1: | Black pole, Rough pole |
| Surface treatment 2: | Hot dip Galvanizing antirust. |
| Surface treatment 3: | Hot dip galvanizing with powder coating |
| Temperature range | -35 °C~+45 °C |
| Wind Speed: |
Aganist wind pressure of 120Km/h to 180Km/h, it according to client’s design. |
| Base plate mounted |
Base plate is square, octagonal or round in shape with slotted holes for anchor bolt and dimension as per customer’s requirement. |
| Ground mounted: | The length buried underground as per customer’s requirement. |
| Quality Control | According to ISO9001-2008 requirements. |
| Certificates | ISO9001-2008, Audited Supplier, The AAA grade certificate of goodwill |
| Other | Less land occupation & easy maintenance. |

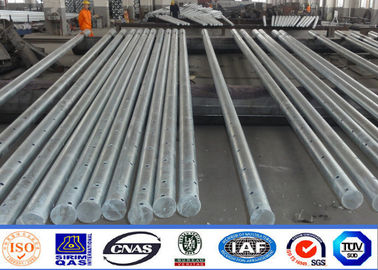

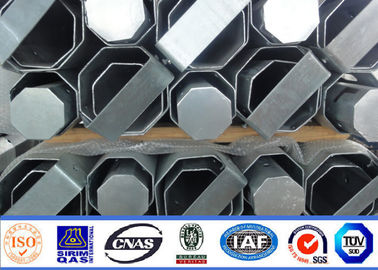

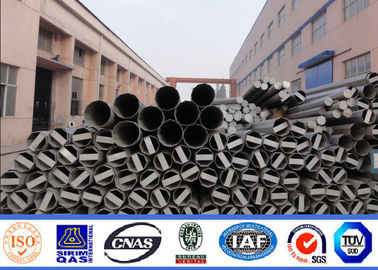

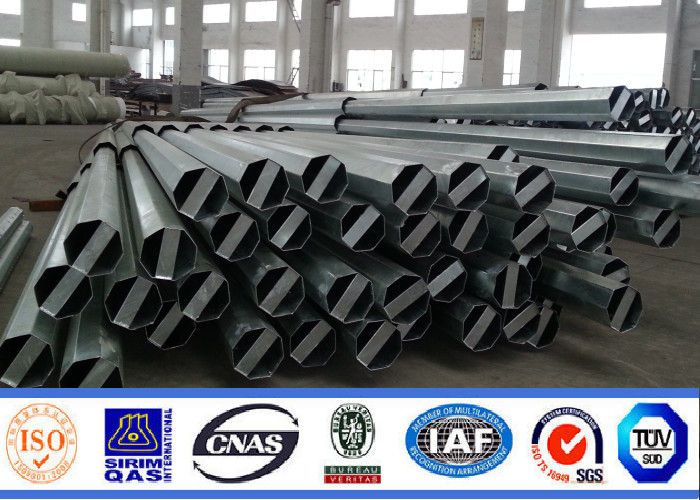

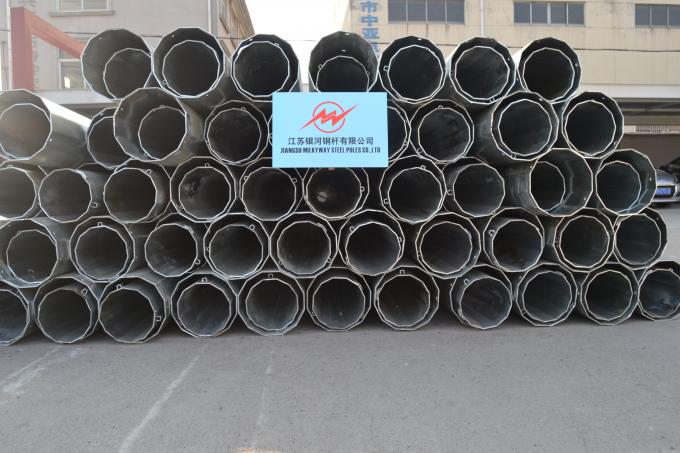

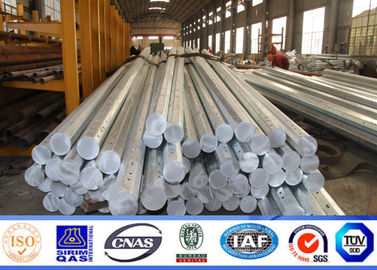

Products Picture

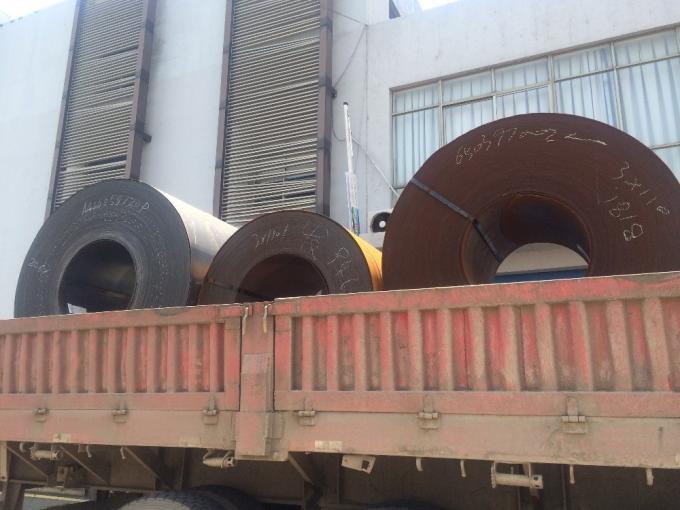

Material
ASTM 572 grade 50 with yield strength not less than 345mpa

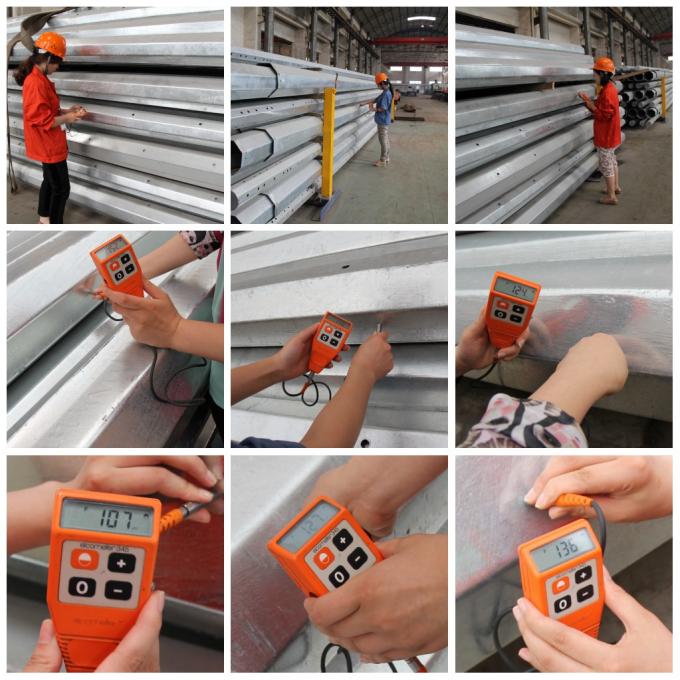

Glavanization
---Average thickness of the galvanization : not less than 86 μm
Standaed Accessory
---Top plate

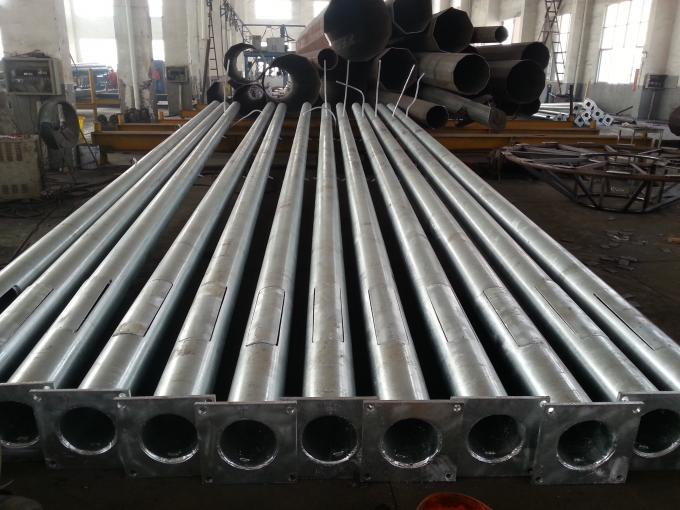

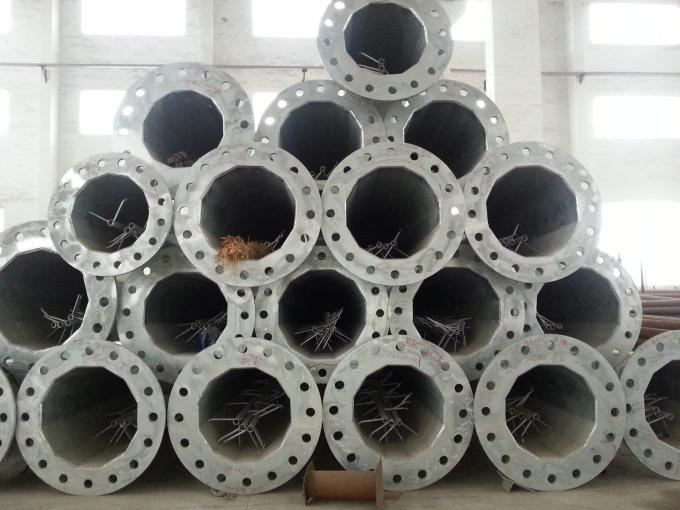

---Base plate
---Bottom strip
---Climbing rung
---Anchor bolt
---Bitumen marking
---Removable ladder
The information to inquiry or purchase
---Steel pole height and force
---Cross arm type and length, the position to install in the steel pole
---The method to fix the cross arm (use Bolt to connect or use one or two template to weld in
the steel pole to install the cross arm)
---Safety factor of the steel pole.
---wind speed
---Type of climbing rung
---Destination port
Application
|
Plaza High Mast Lighting pole Airport High Mast Lighting pole Highway High Mast Lighting pole Storage-yard High Mast Lighting pole Industrial-plant High Mast Lighting pole |
Park High Mast Lighting tower Dock High Mast Lighting tower Stadiums High Mast Lighting tower Overpass High Mast Lighting tower Toll-station High Mast Lighting tower |

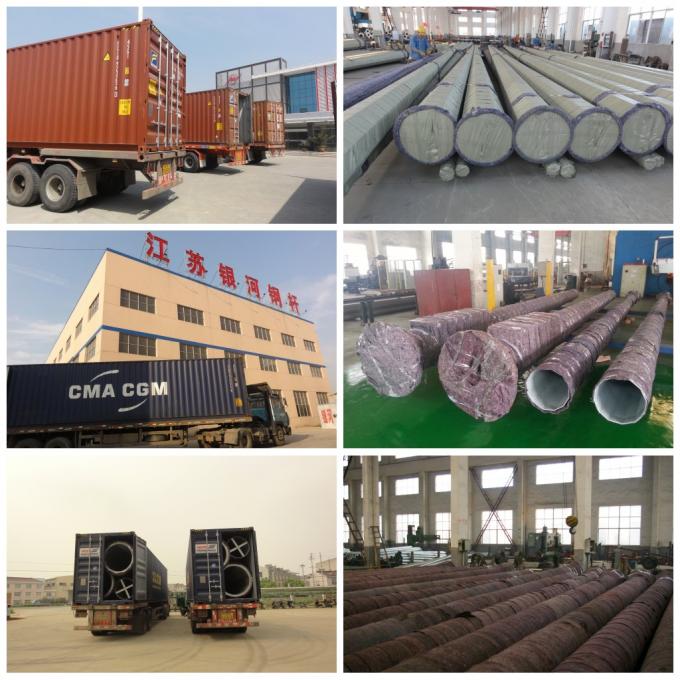

Company instruction:
|
JiangSu Milky Way Steel Poles Co., Ltd.was established in 1988, is located in Yixing City, Jiangsu Province, Wan Shi Town, covering an area of 35,000 square meters, annual output value reached 200 million . We have 20 years experience in design and production. Our main products are power pole, communication towers, street lighting poles, steel bracket and so on. The company has strong technical force, advanced production equipment, perfect quality management system, product quality has reached international advanced level. |
