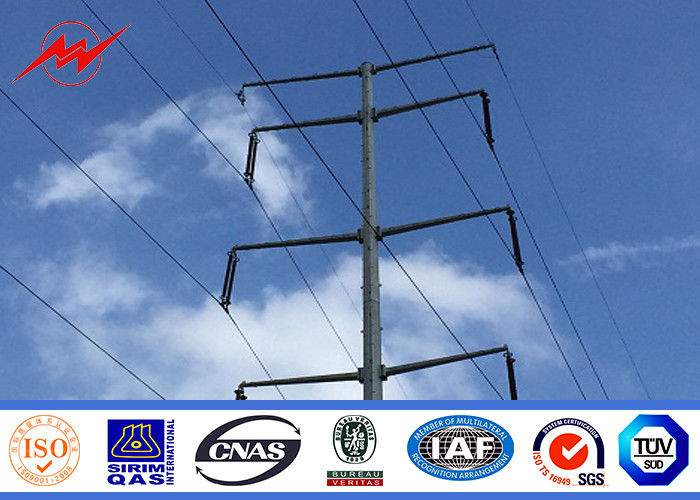

Q235 Hot Dip Galvanized Pole For Electrical Transmission

: Large Image : Q235 Hot Dip Galvanized Pole For Electrical Transmission

Product Details:

Place of Origin:	China
Brand Name:	Milky Way
Certification:	ISO, BV,
Model Number:	Hot Dip Galvanized 7.5m 9m Electrical Power Pole for Electrical Transmission

Payment & Shipping Terms:

Minimum Order Quantity:	one 40 HQ
Price:	negotiation
Packaging Details:	as per customer request
Delivery Time:	usually 4 weeks after confirming
Payment Terms:	T/T, L/C
Supply Ability:	300 pieces pole per day

Contact Now

Detailed Product Description

Material:	Steel,GR65,With Miminum Yield Strength 460mpa	Application:	Electric Power Transmission And Distribution
Surface Treatment:	Hot Dip Galvanized,Hot-dip-galvanized Following ASTM123	Color:	Customer Request
Height:	By Client Required	Name:	Metal Power Poles
Highlight:	8m hot dip galvanized pole , Q235 hot dip galvanized pole , Electrical Transmission utility power pole

Hot Dip Galvanized Electrical Power Pole for Electrical Transmission

Features:
1. Various towers are space frame structure. Bars are composed of single equilateral angle steel or combination of angle steel.
2. The materials are generally Q235, Q345 and Q420. The connection between the bars is crude bolt.
3. Hot dip galvanized anti-corrosion. Very convenient for transportation and construction erection.
4. We set foot nails on one of main legs to facilitate the construction workers to climb onto the tower for operation

Also we have lots of experiences for the tower design based on International standard and offering low cost-effective solution to our clients worldwide.

No.	Description	Detailed Specification and Major design Parameters
1	Design Code	1. Chinese National Standard: a. DL/T 5154-2002 Technical Regulation of Design For Tower and Pole Structures of Overhead Transmission Line b. DL/T 5219-2005 Technical Regulation for Designing Foundation of Overhead Transmission Line 2. American Standard: a. ASCE 10-97-2000 Design of Latticed Steel Transmission Structures b. ACI 318-02 Building Code Requirement for Structure Concrete
2	Design Software	PLS and MS Tower, SAP2000, AutoCAD, STW, TWsolid, SLCAD etc
3	Design Loading	As per requirement and specification by Clients worldwide.
4	Load test/destructive test	We can arrange it by Government authority if it is necessary and the cost of such kind of test is separately from the tower pricing.
5	Voltage	33KV, 66/69KV, 110KV, 220KV/230KV, 330KV, 380/400KV, 500KV, 750KV, 800KV, 1000KV Transmission Line
6	Hot-dip galvanization	ISO 1461-2009, ASTM A123
7	Steel Grade	1. High strength low alloy structural steel: Q420B which is equivalent with ASTM Gr60 2. High strength low alloy structural steels: Q355B which is equivalent with ASTM Gr50 or S355JR 3. Carbon Structural Steel: Q235B which is equivalent with ASTM A36 or S235JR
8	Bolts and Nuts	Mainly ISO 898 grade 6.8 and 8.8 bolts for Both Chinese, ISO and DIN standard
9	Tower Type	Angular Towers, Tubular Towers, Guyed Mast, Monopole Tower
10	Tower Type	Suspension Tower, Tension Tower, Dead Tower, Substation Structure
11	Warranty	Tower structures: 10 years
12	Return Period	50 Years
13	Transportation	We are very close to the biggest port in the world which is our advantage for sea transportation.
14	Quality Control	Follow ISO 9001 system and strictly QC inspection for raw material, prototype assembly test, galvanization test and pre-shipment inspection for the both quantity and quality We treat the quality first and 100% inspection ratio.

Application	Electricity distribution
Shape	Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Torlance of dimenstion	GR65/A572,minimum yield strength>=460n/mm2
Power	10 KV ~550 KV
Safety Factor	Safety factor for conducting wine : 8 Safety factor for grounding wine : 8
Design Load in Kg	300~ 1000 Kg appliced to 50cm from the to pole
Marks	Name palte through rivert or glue ,engrave ,emboss as per customer requirement
Surface treatment	Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Joint of Poles	Insert mode,innerflange mode,face to face joint mode
Design of pole	Against earthquake of 8 grade
Wind Speed	160 Km/Hour . 30 m /s
Standard	ISO 9001
Welding	We have past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1
Thickness	1 mm to 30 mm
Production Process	Raw material test → Cutting →Molding or bending →Weldng (longitudinal )→Dimension verify→Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting→Recalibration →Thread →Packages
Packages	Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data.

Our company

Established in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port . Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on.
We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia , Dominica, Congo, Togo and Guniea so on.
